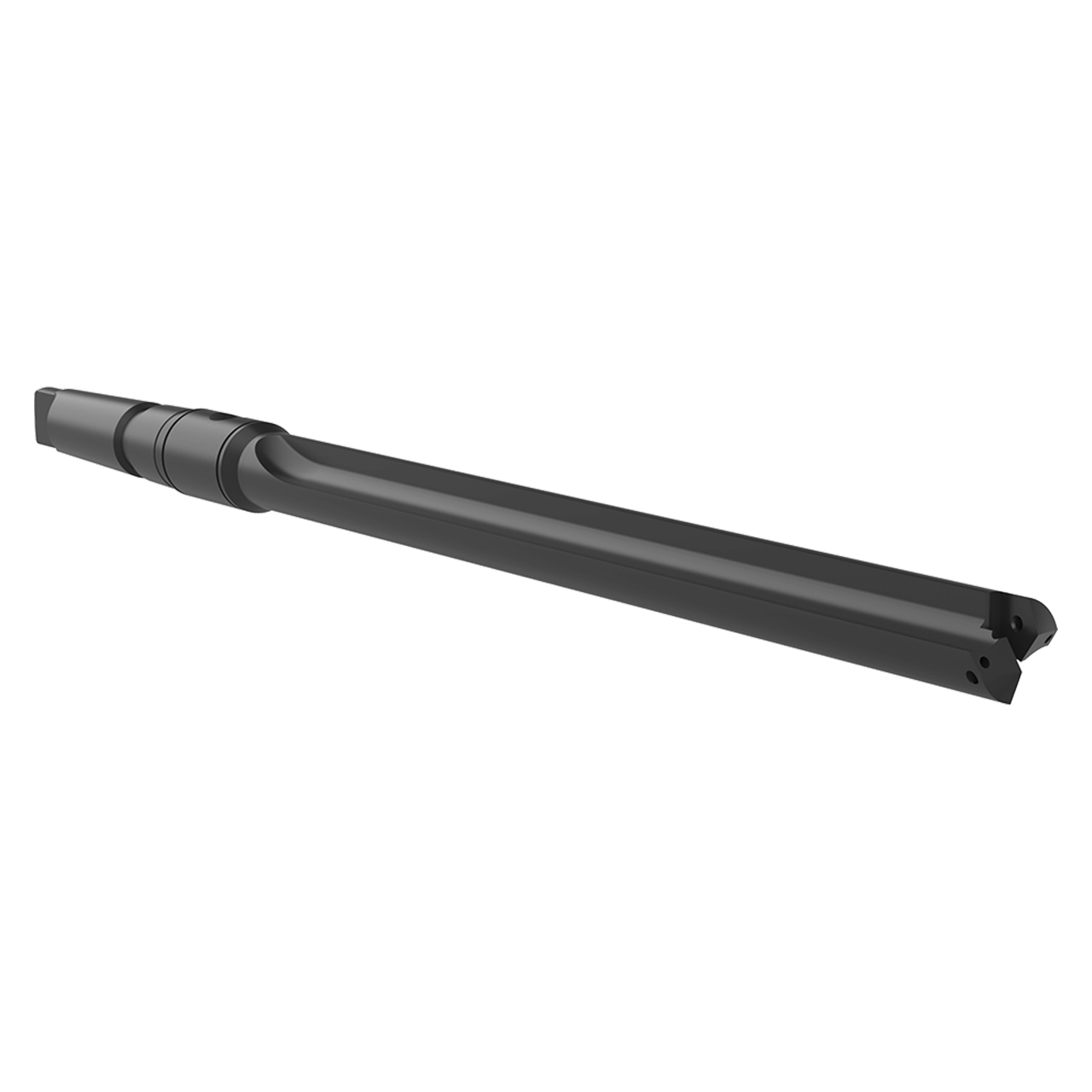

Allied Machine's T-A Holders offer a large variety of options to accommodate any of your holemaking needs.
Features:
| # MFG | 25015S-003I |
| Body Length (Inch) | 11-7/8" |
| Drill Depth (Inch) | 10-3/4" |
| Flute Type | Straight |
| Length Type | Extended |
| Maximum Diameter (Inch) | 15/16" |
| Minimum Diameter (Inch) | 55/64" |
| Overall length (Inch) | 17-5/32" |
| Pipe Tap Side (Inch) | 1/8" |
| Series | 1.5 |
| Shank Diameter (Inch) | #3 MT |
| Shank Type | Morse Taper |
| Tool Reference Length (Inch) | 13-39/34" |
