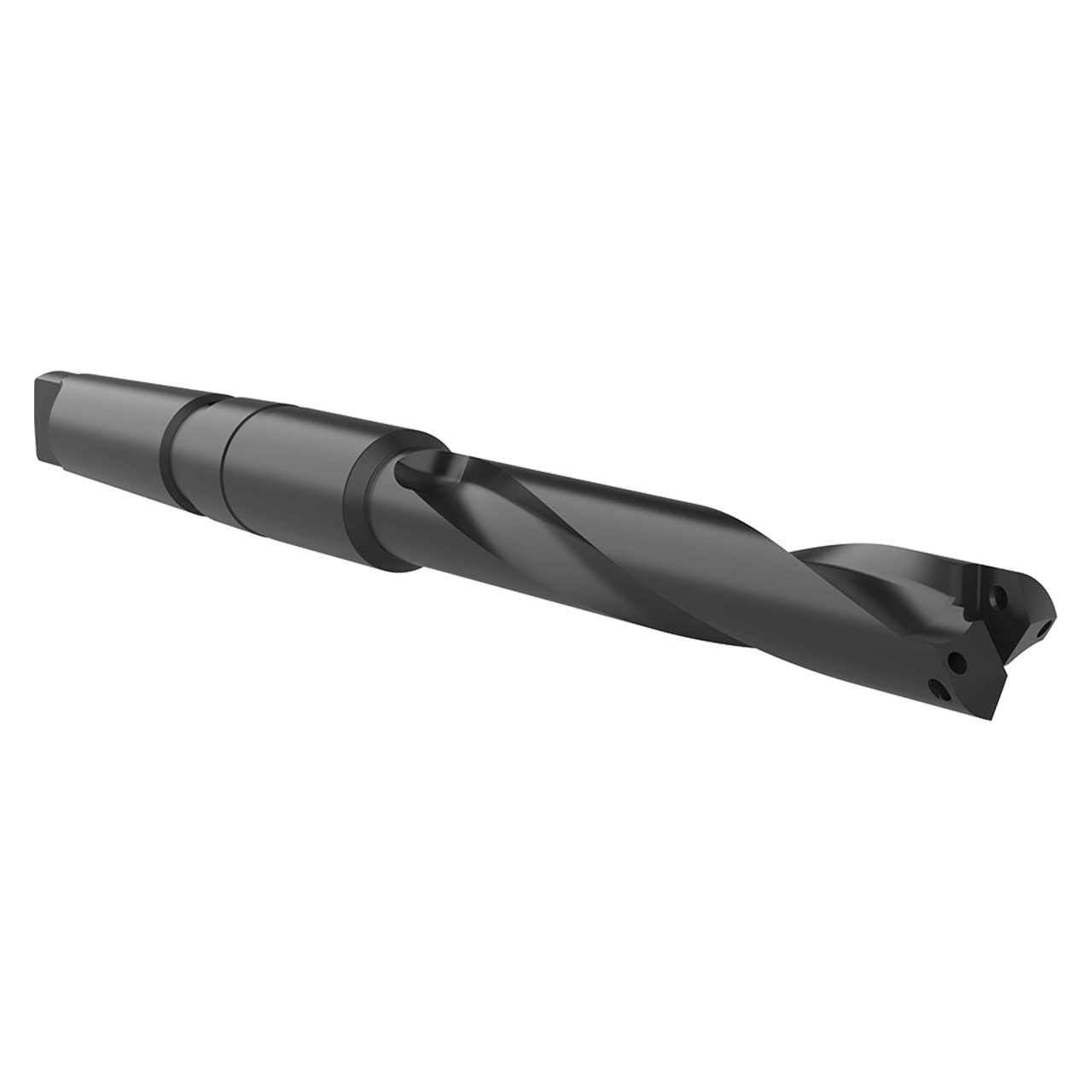

Allied Machine's T-A Holders offer a large variety of options to accommodate any of your holemaking needs.
Product Specifications
| # MFG | 25020H-004IS100 |
| Body Length (Inch) | 9-7/32" |
| Drill Depth (Inch) | 6-1/2" |
| Maximum Diameter (Inch) | 1-3/8" |
| Minimum Diameter (Inch) | 1" |
| Overall Length (Inch) | 14-5/32" |
| Series | 2 |
| Shank Diameter (Inch) | #4 MT |
| Shank Type | Morse Taper |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Series:
2
Minimum Drill Diameter (Inch):
1"
Minimum Drill Diameter (Decimal Inch):
1.0000"
Minimum Drill Diameter (mm):
25.40mm
Maximum Drill Diameter (Inch):
1-3/8"
Maximum Drill Diameter (Decimal Inch):
1.3800"
Maximum Drill Diameter (mm):
34.93mm
Shank Type:
Morse Taper
Shank Taper Size:
#4 MT
Spade Drill Length:
Extended
Maximum Drill Depth (Inch):
6-1/2"
Maximum Drill Depth (Decimal Inch):
6.5000"
Maximum Drill Depth (mm):
165.10mm
Flute Type:
Helical
interval quantity:
1
