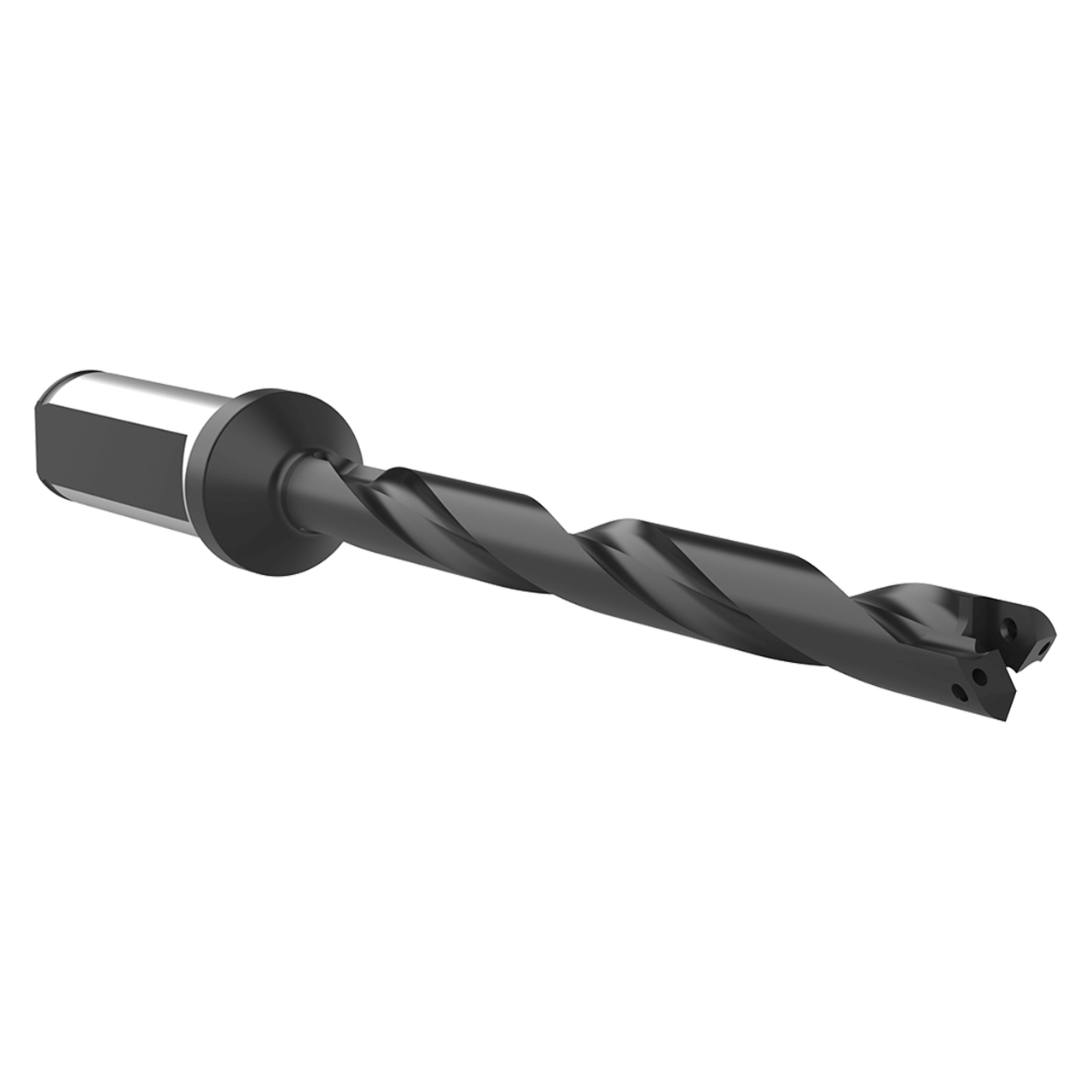

Allied Machine's T-A Holders offer a large variety of options to accommodate any of your holemaking needs.
Features:
- Helical or Straight flute designs
- Lathe, morse taper, or flange style shanks
- Through coolant optimizes chip evacuation and improved
Product Specifications
| # MFG | 250Z0H-20FM |
| Body Length (mm) | 140.5mm |
| Drill Depth (mm) | 111.1mm |
| Flute Type | Helical |
| Length Type | Extended |
| Maximum Diameter (mm) | 12.5mm |
| Minimum Diameter (mm) | 11.5" |
| Overall length (mm) | 190.5mm |
| Pipe Tap Rear (Inch) | 1/8" |
| Series | Z |
| Shank Diameter (mm) | 20mm |
| Shank Length (mm) | 50mm |
| Shank Type | Flanged |
| Tool Reference Length (mm) | 142.9mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Series:
Z
Minimum Drill Diameter (Inch):
29/64"
Minimum Drill Diameter (Decimal Inch):
0.4500"
Minimum Drill Diameter (mm):
11.50mm
Maximum Drill Diameter (Inch):
31/64"
Maximum Drill Diameter (Decimal Inch):
0.4900"
Maximum Drill Diameter (mm):
12.50mm
Shank Type:
Flanged
Flute Type:
Helical
