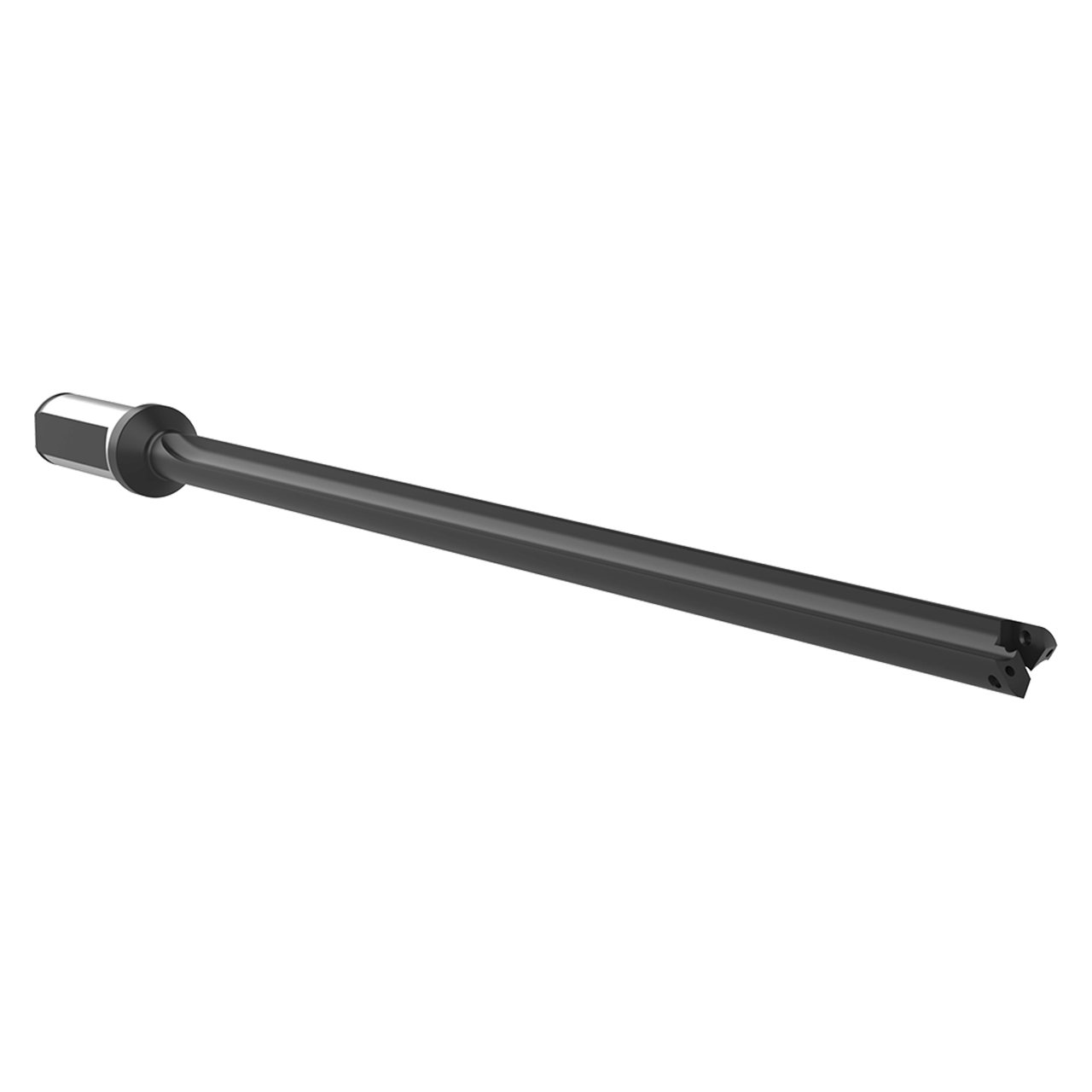

Allied Machine's T-A Holders offer a large variety of options to accommodate any of your holemaking needs.
Features:
- Helical or Straight flute designs
- Lathe, morse taper, or flange style shanks
- Through coolant optimizes chip evacuation and improved
Product Specifications
| # MFG | 27000S-20FM |
| Body Length (mm) | 323.9mm |
| Drill Depth (mm) | 295mm |
| Flute Type | Straight |
| Length Type | XL |
| Maximum Diameter (mm) | 17.5mm |
| Minimum Diameter (mm) | 13" |
| Overall length (mm) | 373.9mm |
| Pipe Tap Rear (Inch) | 1/8" |
| Series | 0 |
| Shank Diameter (mm) | 20mm |
| Shank Length (mm) | 50mm |
| Shank Type | Flanged |
| Tool Reference Length (mm) | 326.7mm |
