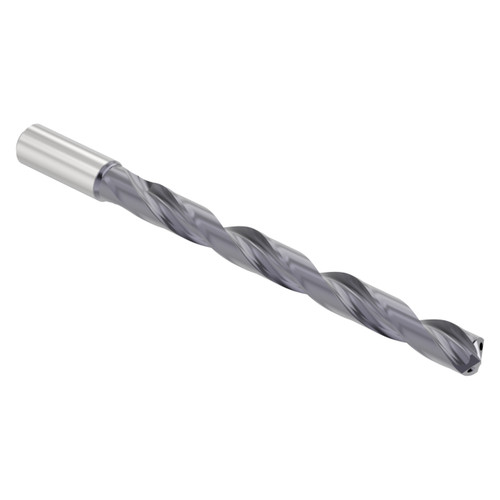

Solid carbide tools with patent pending geometry for 3-20mm diameter product range. High productivity in difficult materials. Ideal for use in Stainless Steel, Inconel, Hastelloy, and Titanium.
Features:
- Unique combination of geometry and coating allows for use in a wide variety of applications
- Reinforced shank adds durability
- Through coolant design
- Note: Non-stocked items are NON-RETURNABLE
Product Specifications
| # MFG | 390M19500A21M |
| Diameter (Inch) | 0.7677" |
| Diameter (mm) | 19.50mm |
| Drill Depth (Inch) | 7.087" |
| Drill Depth (mm) | 180mm |
| Overall Length (Inch) | 10.220" |
| Overall Length (mm) | 259.60mm |
| Shank Diameter (mm) | 20mm |
| Shank Length (mm) | 50mm |
| Coating | Multi-Layer TiAlN |
| Coolant | Yes |
| Flute Type | Helical |
| Grade | Carbide |
| Length Type | 9xD |
| Shank type | Cylindrical |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
