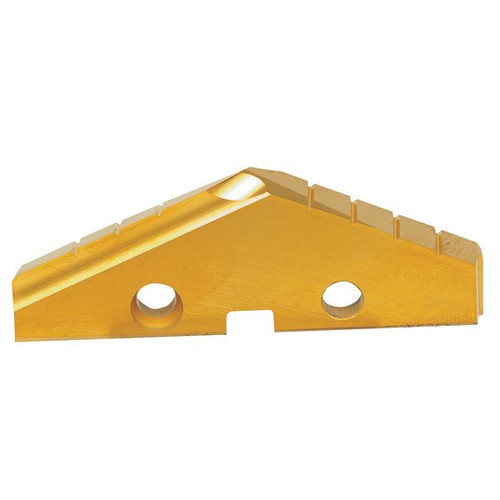

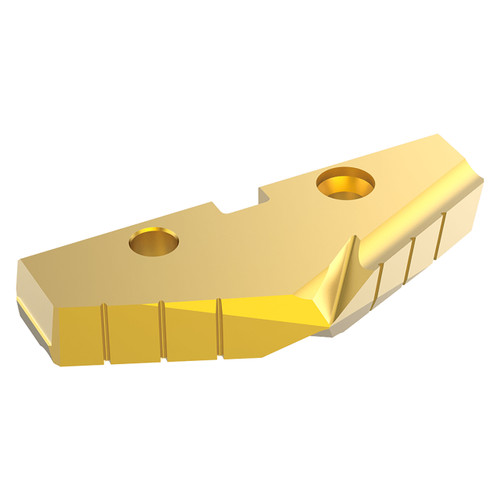

Allied Machine and Engineering 434T-0218 | 2-9/16" Diameter x 5/16" Thickness 132 Degree Included Angle TiN Coated High Speed Steel 4 Series Spade Drill Insert

$64.75 $61.51
(You save $3.24)
Brand:
Allied Machine and Engineering
Diameter (Inch):
2-9/16"
Diameter (Decimal Inch):
2.5625"
Diameter (mm):
65.09mm
Included Angle:
132 Degree
Finish/Coating:
TiN
Material:
High-Speed Steel
Thickness (Inch):
5/16"
Material Grade:
CPM M4
Application:
General Purpose
interval quantity:
1
SKU:
10004327
UPC:
Weight:
0.14 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Allied Machine and Engineering 434T-0218 | 2-9/16" Diameter x 5/16" Thickness 132 Degree Included Angle TiN Coated High Speed Steel 4 Series Spade Drill Insert

GEN2 T-A drill inserts provide lower drilling forces, increased drill stability, smoother breakout on through-hole and allows for improved chip formation.

Features:

  • Notch Point geometry improves stability, hole straightness, and reduces thrust
  • Web Thin reduces thrust and increases point strength, allowing greater reliability
  • Helical Margin increases drill stability
  • Helical Flute improves tool life
    •
    Product Specifications
    # MFG434T-0218
    Diameter (Inch)2.5625"
    Diameter Fractional Equivalent2-9/16"
    Diameter (mm)65.09mm
    Thickness (Inch)5/16"
    Included Angle (Degree)132 Degree
    Series4
    GeometryStandard
    MaterialHigh Speed Steel
    CoatingTiN
