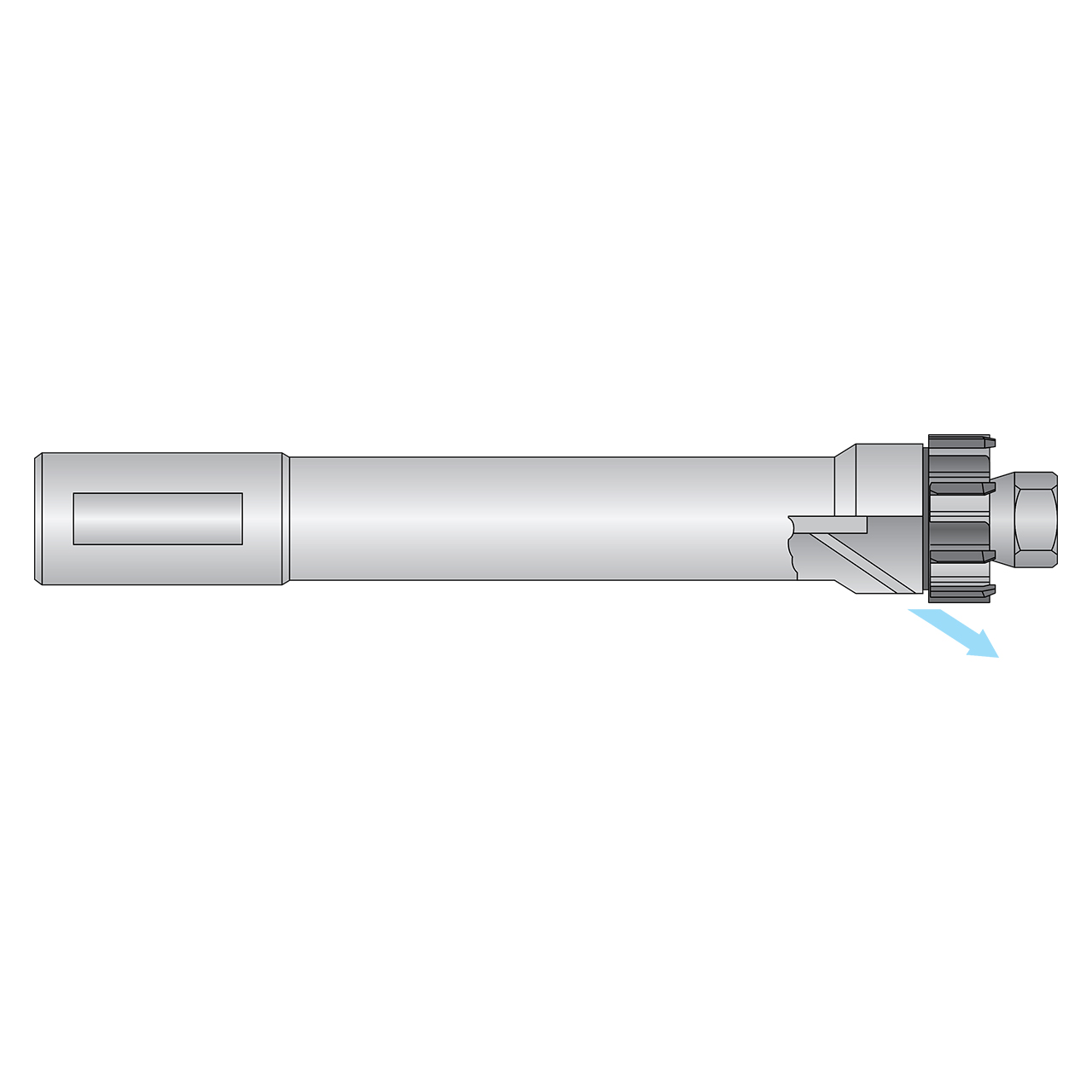

For use with ring-style reamers. The ring reamer modular assembly gives the user TIR control and the ability to have radial adjustment during the setup process and spindle verification for ring style reamers like the holder.
Features:
| # MFG | 4500-MC-070 |
| Assembled Reference Length (Inch) | 11.594" |
| Length of Cut (Inch) | 8.425" |
| Maximum Diameter (Inch) | 2.3857" |
| Minimum Diameter (Inch) | 1.9528" |
| Shank Length (Inch) | 2.362" |
| Series | 4500 |
| Coolant | Radial Coolant |
| Length Type | Long |
| Shank Type | Cylindrical |
| Flat | Yes |
