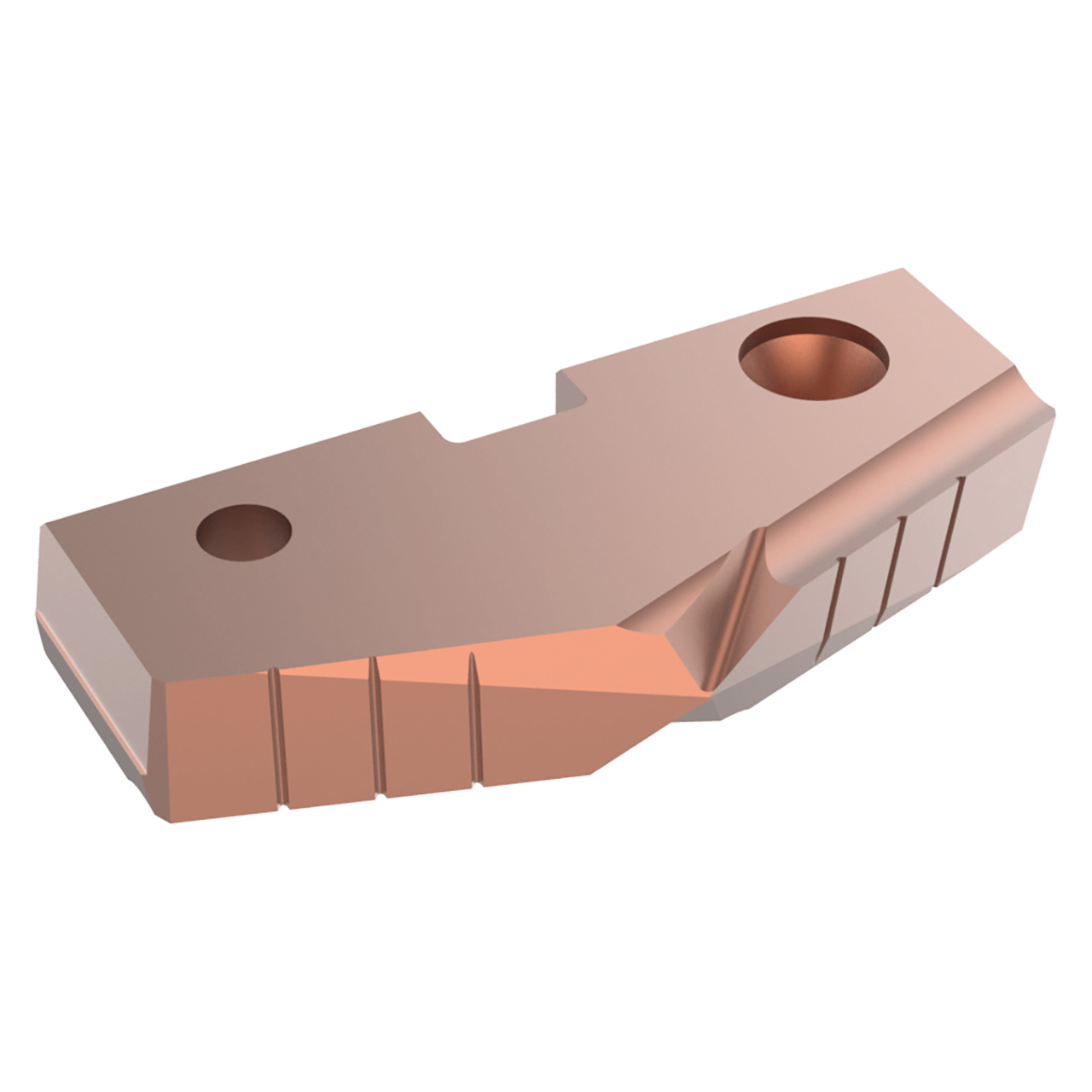

Allied Machine and Engineering 455H-66 | 66.00mm Diameter x 11.11mm Thickness 144 Degree Included Angle AM200 Coated Super Cobalt 5 Series Spade Drill Insert

$126.50 $120.18
(You save $6.32)
Brand:
Allied Machine and Engineering
Diameter (Decimal Inch):
2.5984"
Diameter (mm):
66.00mm
Included Angle:
144 Degree
Finish/Coating:
AM200
Material:
High-Speed Steel
Thickness (Inch):
7/16"
Material Grade:
Super Cobalt
Application:
General Purpose
interval quantity:
1
SKU:
23033346
UPC:
Weight:
0.31 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

GEN2 T-A drill inserts provide lower drilling forces, increased drill stability, smoother breakout on through-hole and allows for improved chip formation.

Features:

  • Notch Point geometry improves stability, hole straightness, and reduces thrust
  • Web Thin reduces thrust and increases point strength, allowing greater reliability
  • Helical Margin increases drill stability
  • Helical Flute improves tool life
    •
    Product Specifications
    # MFG455H-66
    Diameter (Inch)2.5984"
    Diameter (mm)66mm
    Thickness (Inch)7/16"
    Included Angle (Degree)144 Degree
    Series5
    GeometryStandard
    MaterialSuper Cobalt
    CoatingAM200

    Warning:

    This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

    For more information, visit www.P65Warnings.ca.gov

    Brand:
    Allied Machine and Engineering
    Diameter (Decimal Inch):
    2.5984"
    Diameter (mm):
    66.00mm
    Included Angle:
    144 Degree
    Finish/Coating:
    AM200
    Material:
    High-Speed Steel
    Thickness (Inch):
    7/16"
    Material Grade:
    Super Cobalt
    Application:
    General Purpose
    interval quantity:
    1
