| Manufacturer Part Number | 511005 |
| Body Diameter (Decimal Inch) | 1.575" |
| Body Diameter (mm) | 40.00mm |
| Body Length (Decimal Inch) | 1.969" |
| Body Length (mm) | 50.00mm |
| Inner Diameter (mm) | 8.00mm |
| Maximum Diameter (Decimal Inch) | 0.472" |
| Maximum Diameter (mm) | 12.00mm |
| Minimum Diameter (Decimal Inch) | 0.016" |
| Minimum Diameter (mm) | 0.40mm |
| Adjustment Dial (Decimal Inch) | 0.001" |
| Male Major | 16 |
| Offset (Decimal Inch) | 0.047" |
| Offset (mm) | 1.20mm |
| Working Length (Decimal Inch) | 1.969" |
| Working Length (mm) | 50.00mm |
| Material | Steel |

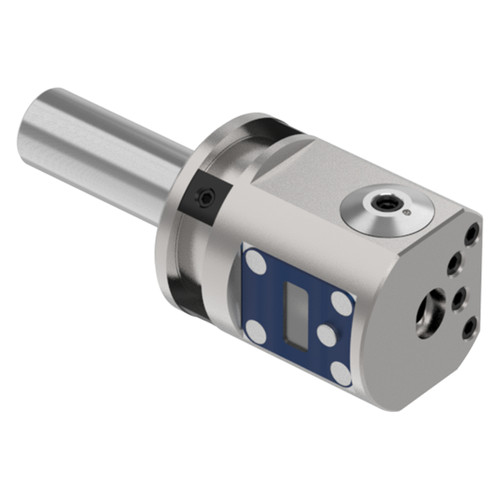

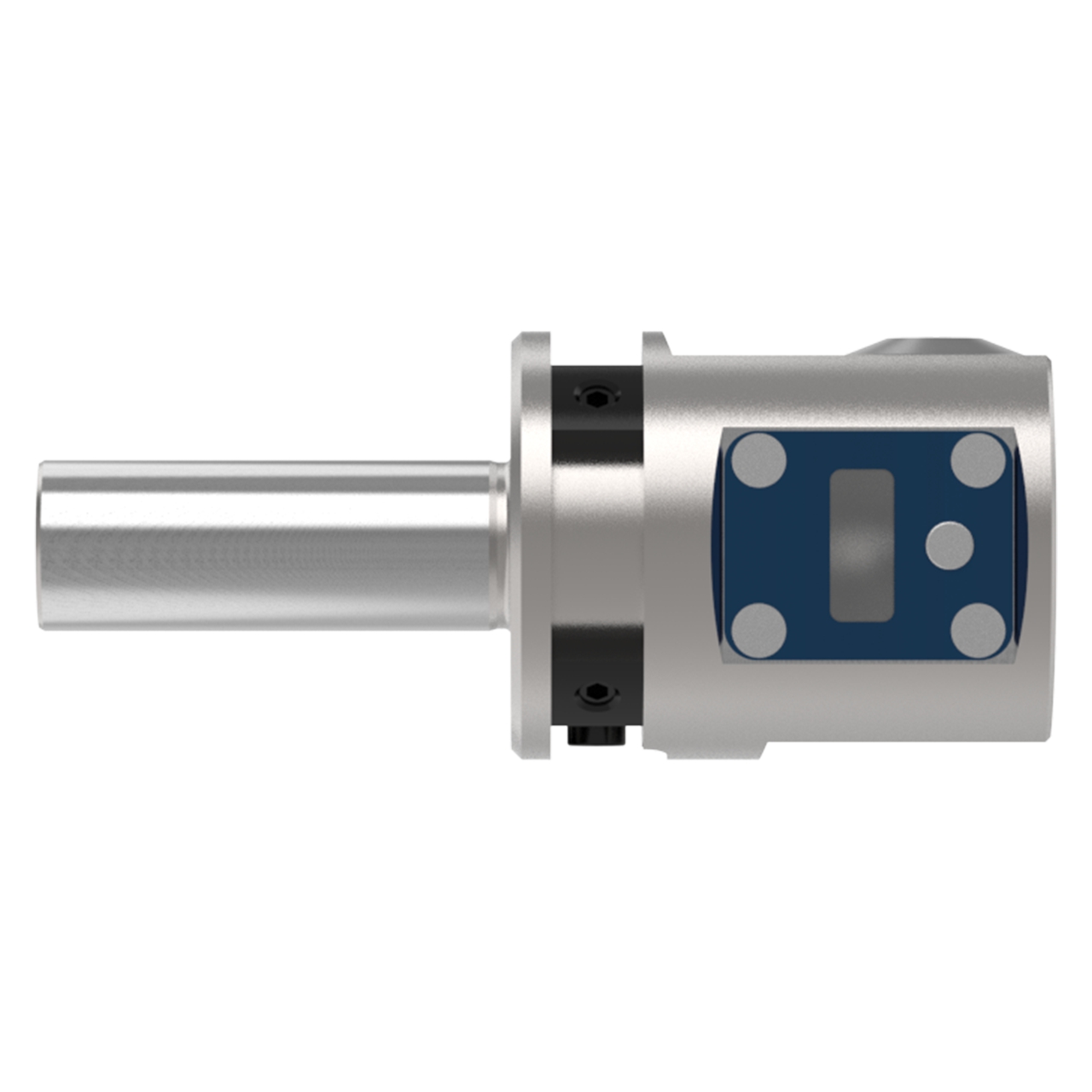

| Product Type | Digital Boring Head |
