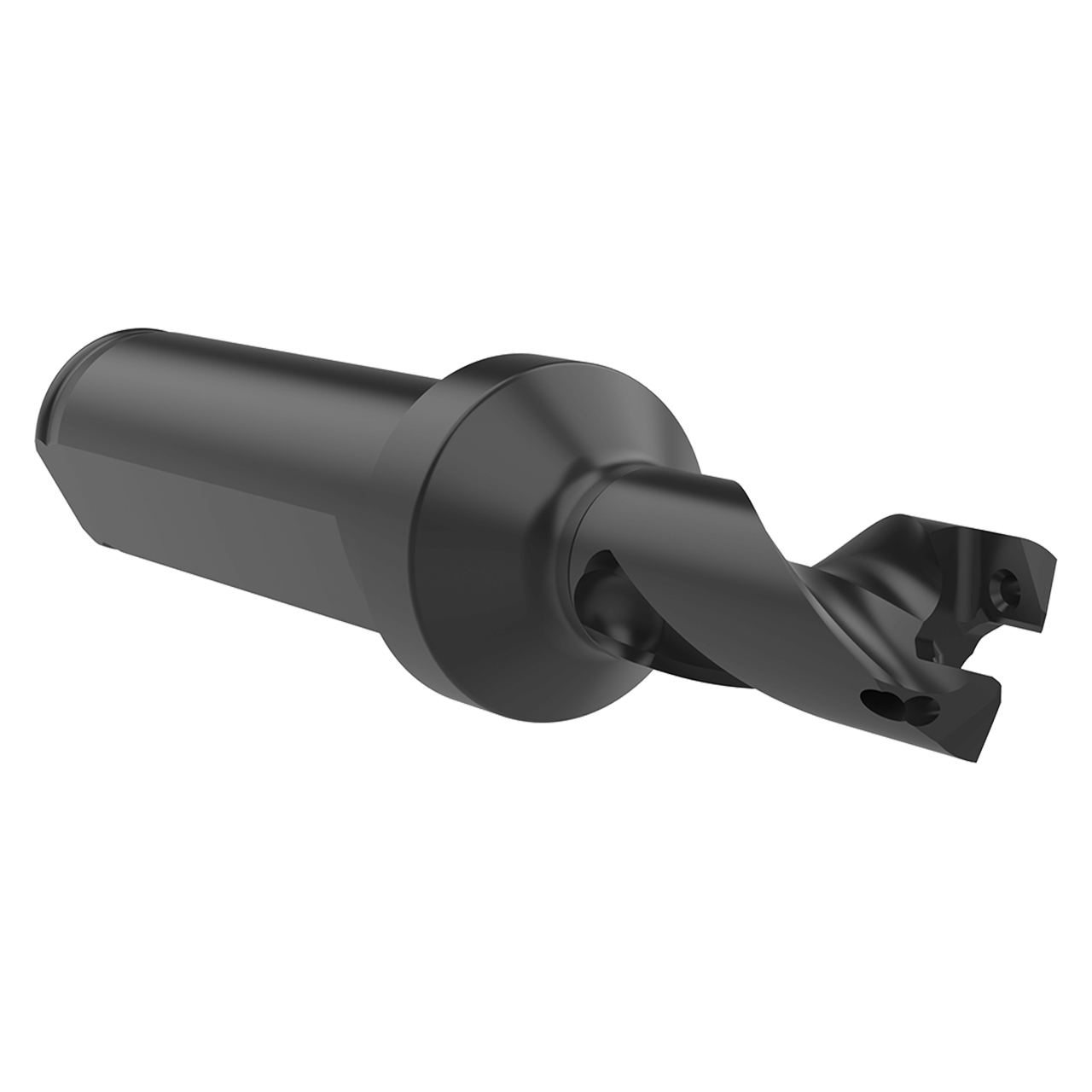

Allied Machine and Engineering 60111H-063F | 11.00mm Diameter x 15.88mm Shank 11 Series Helical Flute Indexable Spade Drill

$298.00 $280.12
(You save $17.88)
Brand:
Allied Machine and Engineering
Series:
11
Minimum Drill Diameter (Inch):
7/16"
Minimum Drill Diameter (Decimal Inch):
0.4331"
Minimum Drill Diameter (mm):
11.00mm
Maximum Drill Diameter (Inch):
15/32"
Maximum Drill Diameter (Decimal Inch):
0.4723"
Maximum Drill Diameter (mm):
11.99mm
Shank Type:
Flanged
Drill Depth by Diameter Ratio:
1xD
Maximum Drill Depth (Inch):
5/8"
Maximum Drill Depth (Decimal Inch):
0.6300"
Maximum Drill Depth (mm):
15.88mm
Flute Type:
Helical
interval quantity:
2
SKU:
23034254
UPC:
Weight:
0.23 LBS
Minimum Purchase:
2 units
Shipping:
Free Shipping

Related Products

GEN3SYS drill holders penetrate up to 35% faster than competitive drilling products. Compatible with GEN3SYS and GEN3SYS XT inserts.

Features:

  • The GEN3SYS high penetration holders have a highly precise locating pad for absolute repeatability and reductions in TIR
  • Straight and helical flute options
  • Precision-ground locating slots
  • Cylindrical flanged and flanged flat shank options

Product Specifications
# MFG60111H-063F
Body Length (Inch)1-43/64"
Drill Depth (Inch)5/8"
Maximum Diameter (Decimal Inch)0.4723"
Maximum Diameter (mm)11.99mm
Minimum Diameter (Decimal Inch)0.4331"
Minimum Diameter (mm)11mm
Overall Length (Inch)3-35/64"
Pipe Tap Rear (Inch)1/16 (NPT)
Series11
Shank Diameter (Inch)5/8"
Shank Length (Inch)1-7/8"
Tool Reference Length (Inch)1-3/4"
Length Type1xD
Coolant Inlet Style RearTSC
FlatYes
Flute TypeHelical
Shank TypeFlanged
