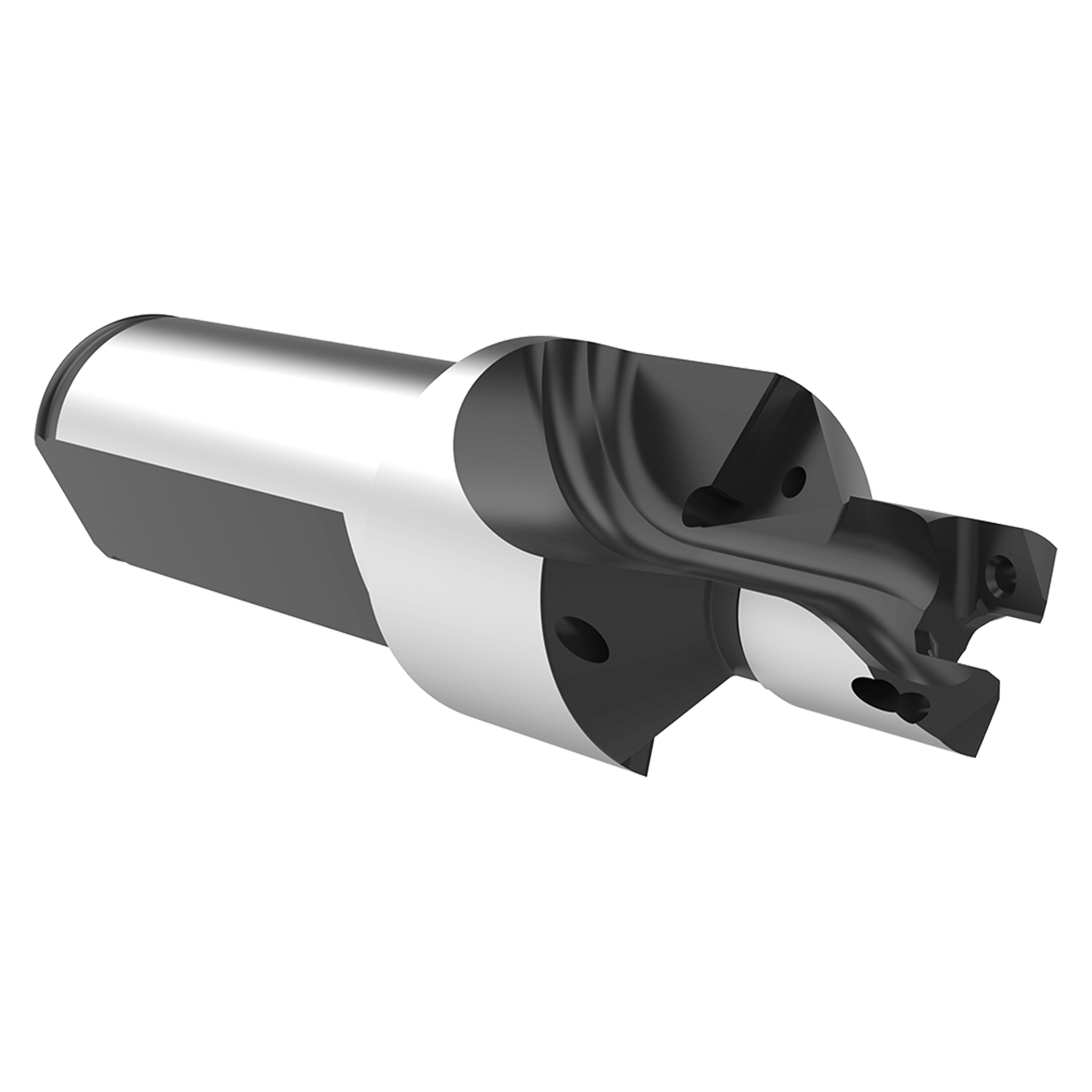

GEN3SYS drill holders penetrate up to 35% faster than competitive drilling products. Compatible with GEN3SYS and GEN3SYS XT inserts.
Features:
- The GEN3SYS high penetration holders have a highly precise locating pad for absolute repeatability and reductions in TIR
- Straight and helical flute options
- Precision-ground locating slots
- Cylindrical flanged and flanged flat shank options
Product Specifications
| # MFG | 60112C45-20FM |
| Body Length (mm) | 43.2mm |
| Drill Depth (mm) | 35.2mm |
| Maximum Diameter (Decimal Inch) | 0.5117" |
| Maximum Diameter (mm) | 12.99mm |
| Minimum Diameter (Decimal Inch) | 0.4724" |
| Minimum Diameter (mm) | 12mm |
| Overall Length (mm) | 101.3mm |
| Series | 12 |
| Shank Diameter (mm) | 20.00mm |
| Shank Length (mm) | 50mm |
| Step Diameter (mm) | 24.8mm |
| Step Length (mm) | 18mm |
| Tool Reference Length (mm) | 45.4mm |
| Length Type | 1xD |
| Coolant Inlet Style Rear | TSC |
| Flat | Yes |
| Flute Type | Straight |
| Shank Type | Flanged |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Maximum Drill Diameter (Inch):
33/64"
Maximum Drill Diameter (Decimal Inch):
0.5117"
Maximum Drill Diameter (mm):
12.99mm
Minimum Drill Diameter (Inch):
15/32"
Minimum Drill Diameter (Decimal Inch):
0.4724"
Minimum Drill Diameter (mm):
12.00mm
Body Shank Diameter (Inch):
25/32"
Body Shank Diameter (Decimal Inch):
0.7900"
Body Shank Diameter (mm):
20.00mm
Drill Shank Diameter (Inch):
1-25/64"
Drill Shank Diameter (Decimal Inch):
1.3900"
Drill Shank Diameter (mm):
35.20mm
