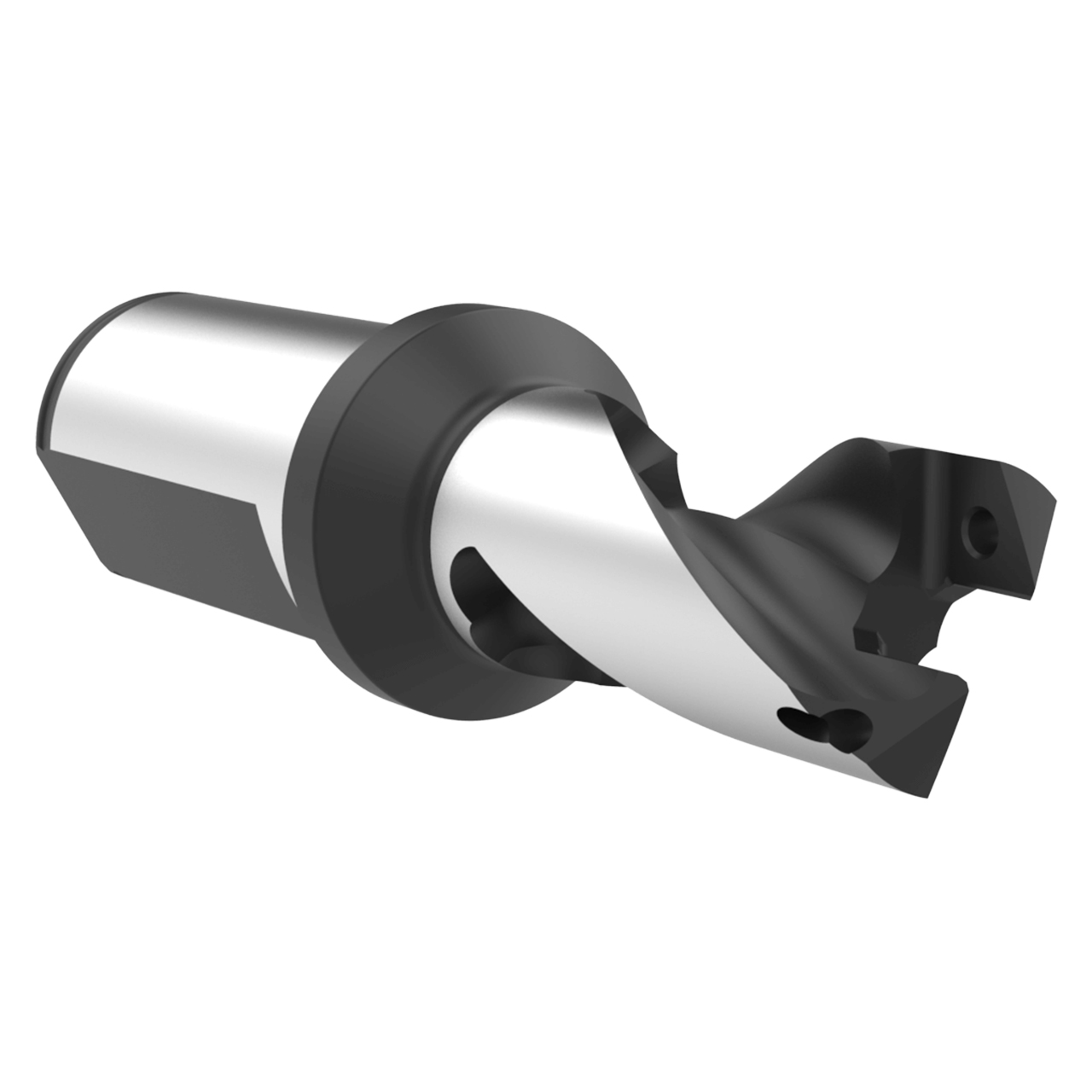

GEN3SYS drill holders penetrate up to 35% faster than competitive drilling products. Compatible with GEN3SYS and GEN3SYS XT inserts.
Features:
- The GEN3SYS high penetration holders have a highly precise locating pad for absolute repeatability and reductions in TIR
- Straight and helical flute options
- Precision-ground locating slots
- Cylindrical flanged and flanged flat shank options
Product Specifications
| # MFG | 60126H-32FM |
| Body Length (mm) | 72.9mm |
| Drill Depth (mm) | 32mm |
| Maximum Diameter (Decimal Inch) | 1.1416" |
| Maximum Diameter (mm) | 28.99mm |
| Minimum Diameter (Decimal Inch) | 1.0236" |
| Minimum Diameter (mm) | 26mm |
| Overall Length (mm) | 133mm |
| Pipe Tap Rear (mm) | 1/8 (BSP) |
| Series | 26 |
| Shank Diameter (mm) | 32.00mm |
| Shank Length (mm) | 60mm |
| Tool Reference Length (mm) | 75.7mm |
| Length Type | 1xD |
| Coolant Inlet Style Rear | TSC |
| Flat | Yes |
| Flute Type | Helical |
| Shank Type | Flanged |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Series:
26
Minimum Drill Diameter (Inch):
1-1/32"
Minimum Drill Diameter (Decimal Inch):
1.0236"
Minimum Drill Diameter (mm):
26.00mm
Maximum Drill Diameter (Inch):
1-9/64"
Maximum Drill Diameter (Decimal Inch):
1.1416"
Maximum Drill Diameter (mm):
28.99mm
Shank Type:
Flanged
Shank Diameter (Inch):
1-17/64"
Shank Diameter (Decimal Inch):
1.2600"
Shank Diameter (mm):
32.00mm
Overall Length (Inch):
5-15/64"
Overall Length (Decimal Inch):
5.2400"
Overall Length (mm):
133.00mm
Drill Depth by Diameter Ratio:
1xD
Maximum Drill Depth (Inch):
1-17/64"
Maximum Drill Depth (Decimal Inch):
1.2600"
Maximum Drill Depth (mm):
32.00mm
Flute Type:
Helical
