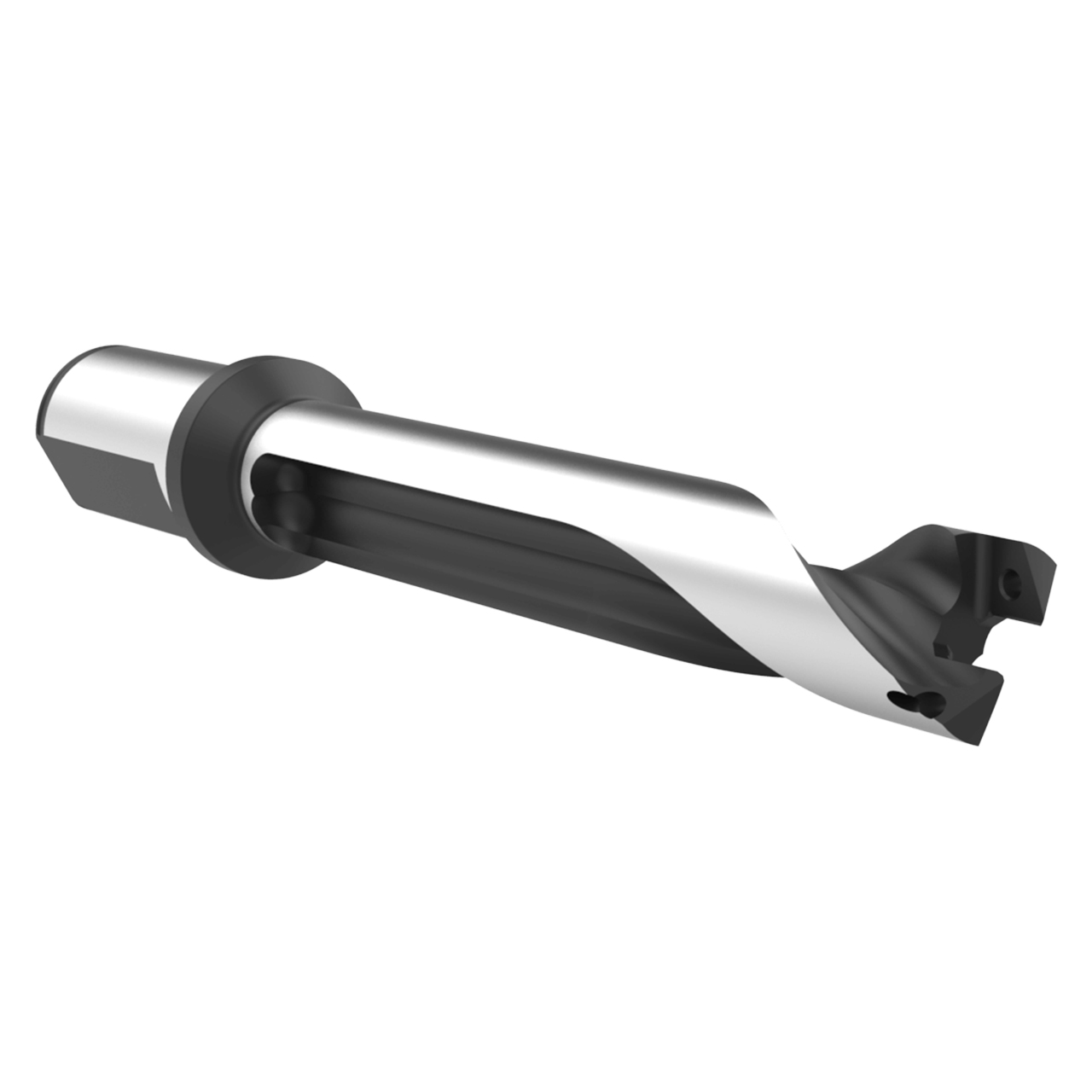

Allied Machine and Engineering 60526S-32FM | 26.00mm Diameter x 32.00mm Shank 26 Series Straight Flute Indexable Spade Drill

SKU: 23034045 Weight: 1.91 LBS Minimum Purchase: 1 unit
UPC:
$469.06
Shipping: Free Shipping

About This Item

GEN3SYS drill holders penetrate up to 35% faster than competitive drilling products. Compatible with GEN3SYS and GEN3SYS XT inserts.

Features:

  • The GEN3SYS high penetration holders have a highly precise locating pad for absolute repeatability and reductions in TIR
  • Straight and helical flute options
  • Precision-ground locating slots
  • Cylindrical flanged and flanged flat shank options

Product Specifications
# MFG60526S-32FM
Body Length (mm)186.1mm
Drill Depth (mm)145mm
Maximum Diameter (Decimal Inch)1.1416"
Maximum Diameter (mm)28.99mm
Minimum Diameter (Decimal Inch)1.0236"
Minimum Diameter (mm)26mm
Overall Length (mm)246.1mm
Pipe Tap Rear (mm)1/8 (BSP)
Series26
Shank Diameter (mm)32.00mm
Shank Length (mm)60mm
Tool Reference Length (mm)188.8mm
Length Type5xD
Coolant Inlet Style RearTSC
FlatYes
Flute TypeStraight
Shank TypeFlanged
