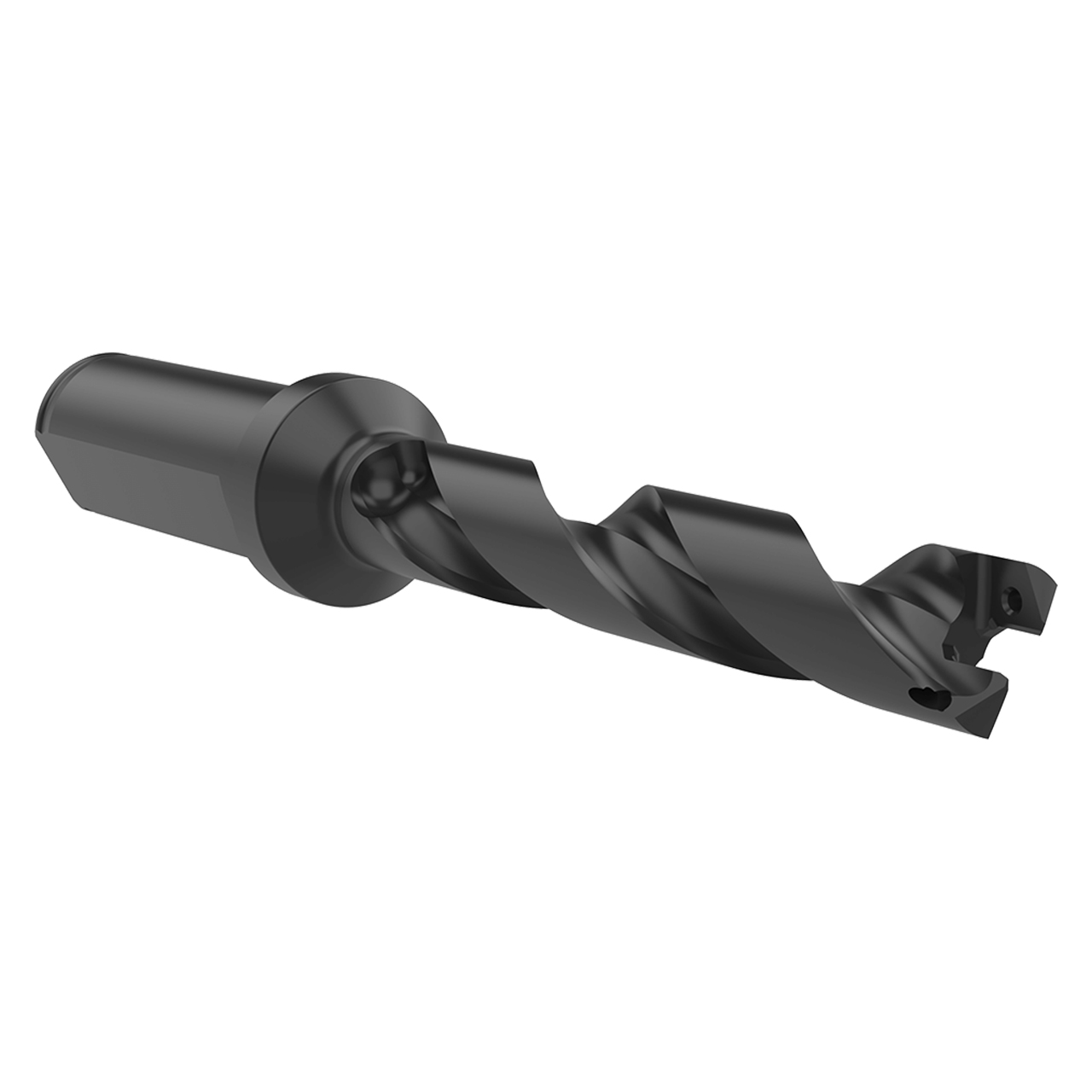

GEN3SYS drill holders penetrate up to 35% faster than competitive drilling products. Compatible with GEN3SYS and GEN3SYS XT inserts.
Features:
- The GEN3SYS high penetration holders have a highly precise locating pad for absolute repeatability and reductions in TIR
- Straight and helical flute options
- Precision-ground locating slots
- Cylindrical flanged and flanged flat shank options
Product Specifications
| # MFG | 60514H-075F |
| Body Length (Inch) | 4-1/32" |
| Drill Depth (Inch) | 2-61/64" |
| Maximum Diameter (Decimal Inch) | 0.5905" |
| Maximum Diameter (mm) | 14.99mm |
| Minimum Diameter (Decimal Inch) | 0.5512" |
| Minimum Diameter (mm) | 14mm |
| Overall Length (Inch) | 6-1/16" |
| Pipe Tap Rear (Inch) | 1/8 (NPT) |
| Series | 14 |
| Shank Diameter (Inch) | 3/4" |
| Shank Length (Inch) | 2-1/32" |
| Tool Reference Length (Inch) | 4-1/8" |
| Length Type | 5xD |
| Coolant Inlet Style Rear | TSC |
| Flat | Yes |
| Flute Type | Helical |
| Shank Type | Flanged |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Series:
14
Minimum Drill Diameter (Inch):
35/64"
Minimum Drill Diameter (Decimal Inch):
0.5512"
Minimum Drill Diameter (mm):
14.00mm
Maximum Drill Diameter (Inch):
19/32"
Maximum Drill Diameter (Decimal Inch):
0.5905"
Maximum Drill Diameter (mm):
14.99mm
Shank Type:
Flanged
Drill Depth by Diameter Ratio:
5xD
Maximum Drill Depth (Inch):
2-61/64"
Maximum Drill Depth (Decimal Inch):
2.9500"
Maximum Drill Depth (mm):
75.01mm
Flute Type:
Helical
interval quantity:
2
