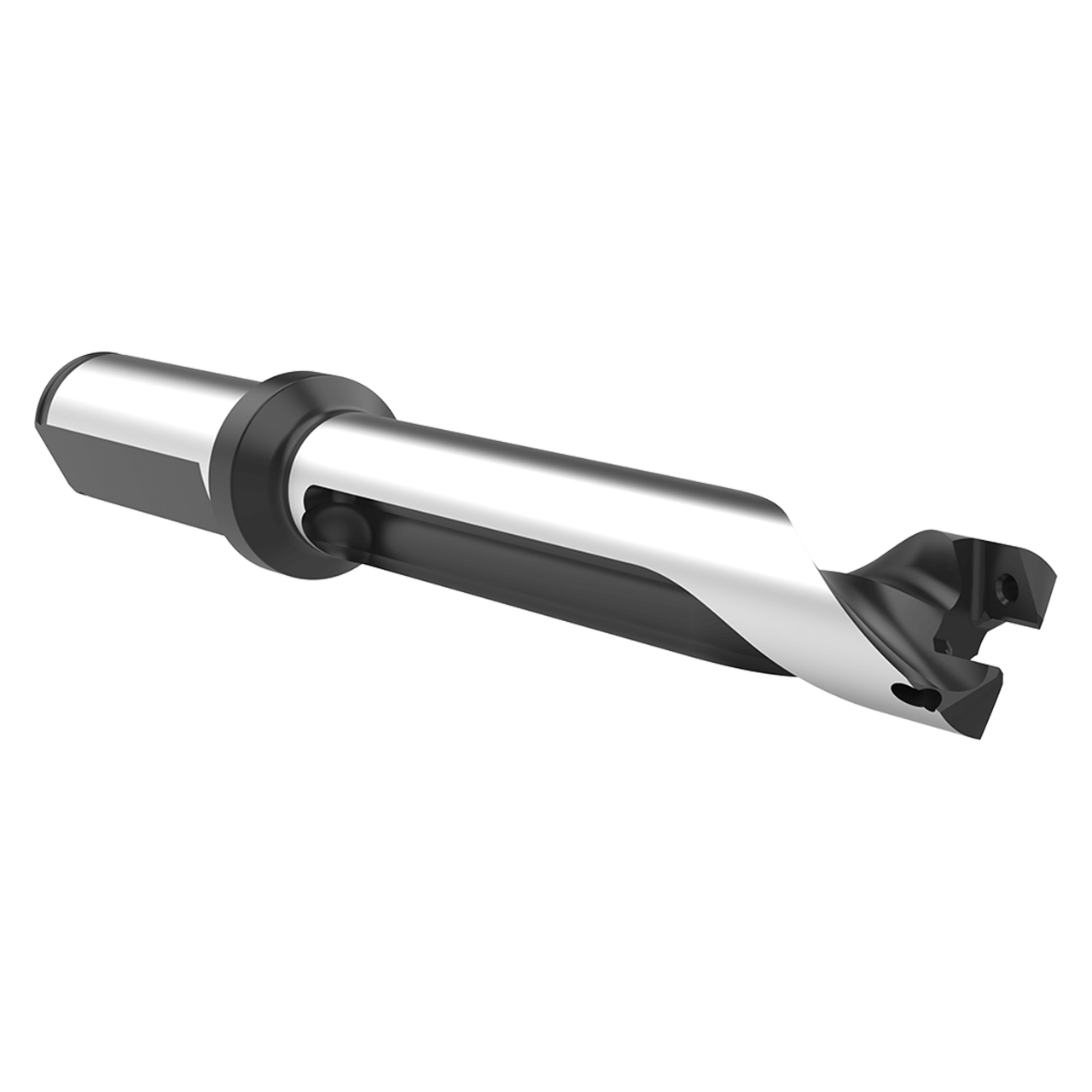

GEN3SYS drill holders penetrate up to 35% faster than competitive drilling products. Compatible with GEN3SYS and GEN3SYS XT inserts.
Features:
- The GEN3SYS high penetration holders have a highly precise locating pad for absolute repeatability and reductions in TIR
- Straight and helical flute options
- Precision-ground locating slots
- Cylindrical flanged and flanged flat shank options
Product Specifications
| # MFG | 60517S-20FM |
| Body Length (mm) | 120mm |
| Drill Depth (mm) | 89.9mm |
| Maximum Diameter (Decimal Inch) | 0.7086" |
| Maximum Diameter (mm) | 17.99mm |
| Minimum Diameter (Decimal Inch) | 0.6693" |
| Minimum Diameter (mm) | 17mm |
| Overall Length (mm) | 170.1mm |
| Pipe Tap Rear (mm) | 1/8 (BSP) |
| Series | 17 |
| Shank Diameter (mm) | 20.00mm |
| Shank Length (mm) | 50mm |
| Tool Reference Length (mm) | 122.9mm |
| Length Type | 5xD |
| Coolant Inlet Style Rear | TSC |
| Flat | Yes |
| Flute Type | Straight |
| Shank Type | Flanged |
