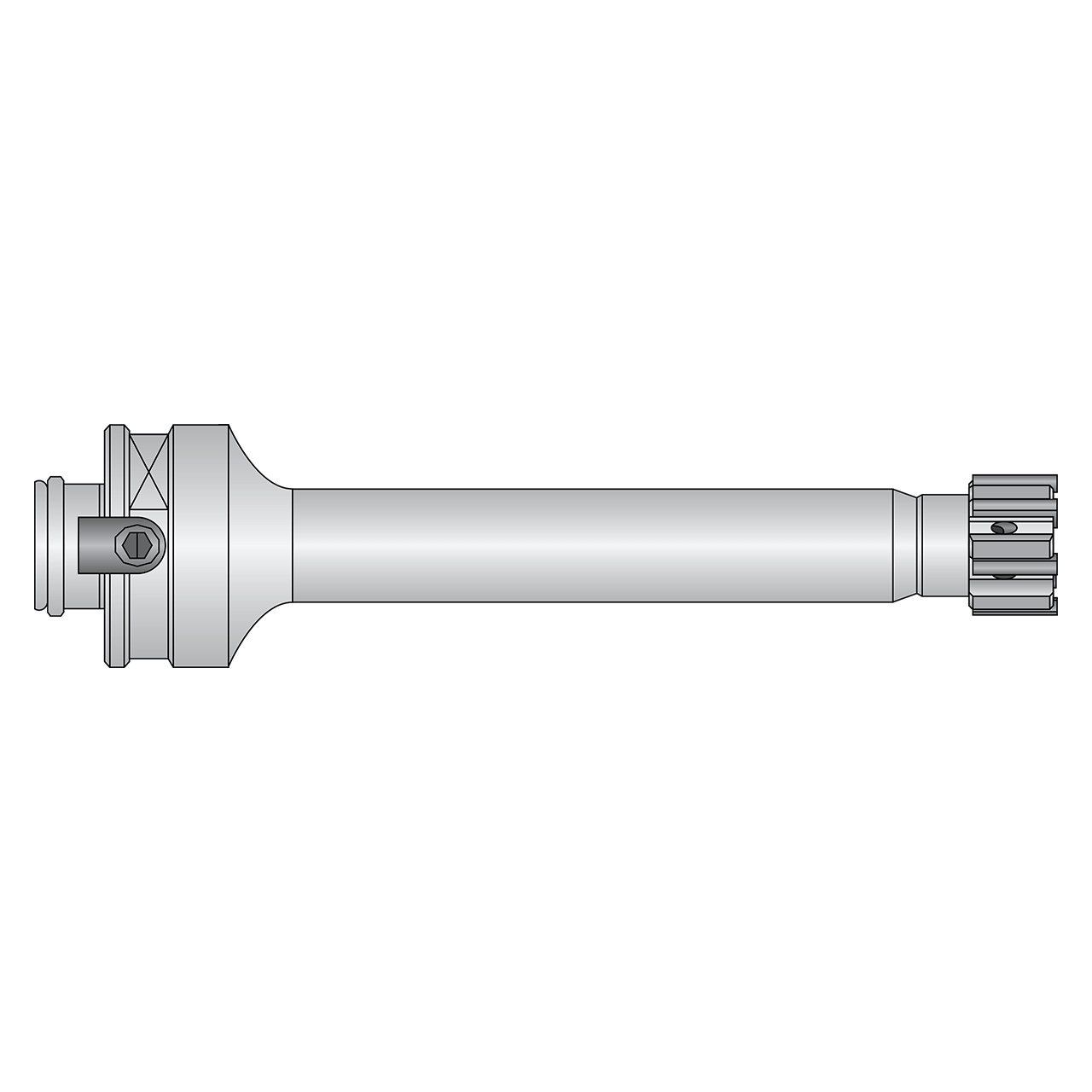

The replaceable head model allows for on-machine replacement, significantly reducing set-up and down time and allowing for multiple diameters within the same arbor reducing inventory requirements.
Features:
- A variety of leads provide tailored solutions for every applications
- Tight tolerances (+/- 0.0002") capable with expandable diameter head design
Product Specifications
| # MFG | 7001-MM-008 |
| Gage Length (mm) | 155mm |
| Length of Cut (mm) | 120mm |
| Maximum Diameter (Decimal Inch) | 2.3858" |
| Maximum Diameter (mm) | 60.6mm |
| Minimum Diameter (Decimal Inch) | 1.9925" |
| Minimum Diameter (mm) | 50.61mm |
| Modular Shank Size (mm) | 50mm |
| Series | 7001 |
| Shank Type | Modular |
| Length Type | Standard |
| Coolant | Central Coolant |
