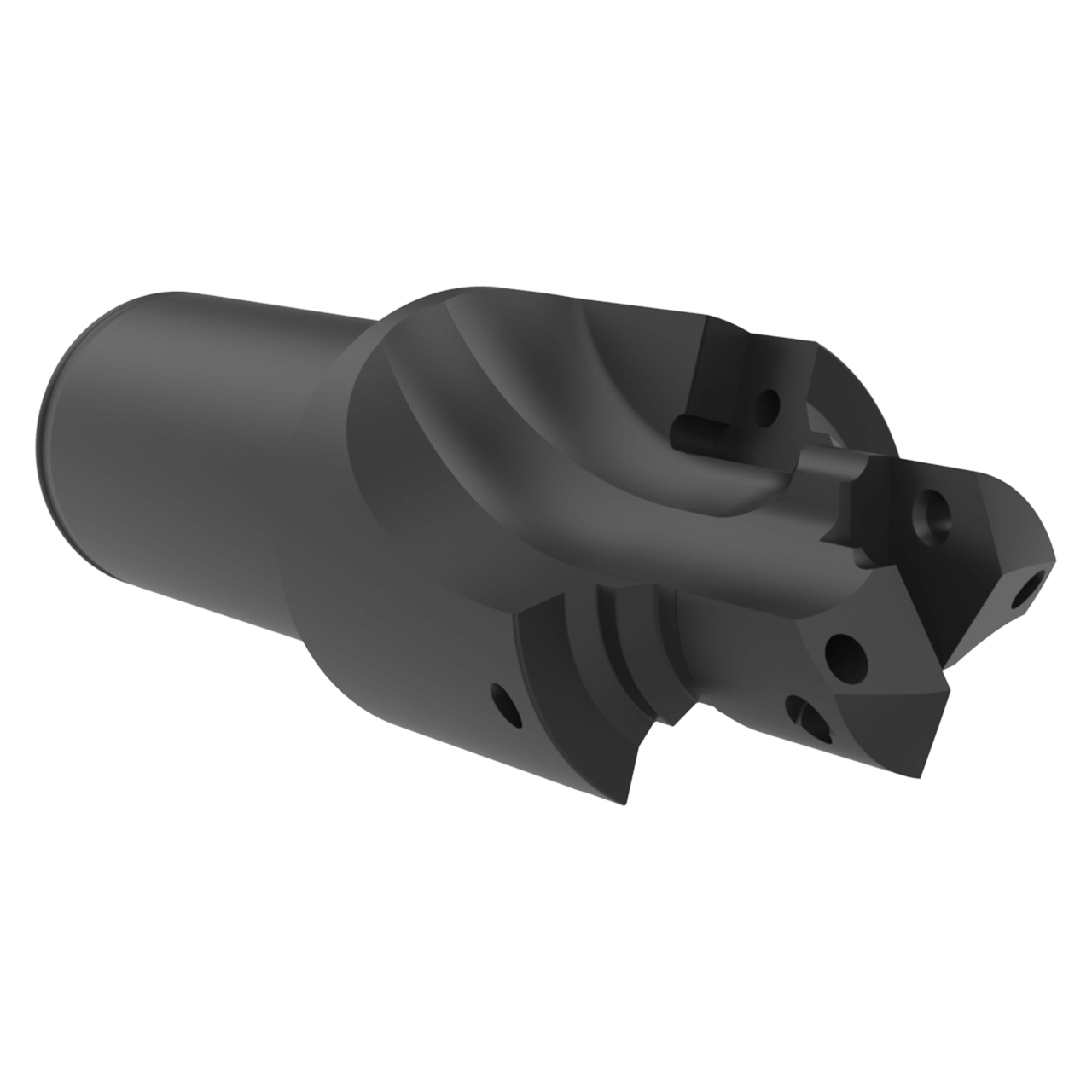

Single Operation Port Hole Drilling Solutions. Allied's revolutionary port hole drilling system combines two manufacturing functions. The patent-pending design provides excellent repeatability and surface finish while eliminating lost production time due.
Features:
- Produced to strict manufacturing tolerances
- Drill and finish forms port in one operation
Product Specifications
| # MFG | AS5202-122-125F |
| Pilot Diameter (Inch) | 0.984" |
| Pilot Diameter (mm) | 25mm |
| Spotface Diameter (Inch) | 1.635" |
| Spotface Diameter (mm) | 41.53mm |
| Shank Diameter (Inch) | 1.25" |
| Shank Diameter (mm) | 31.75mm |
| Seal Angle Diameter (Inch) | 1.237" |
| Seal Angle Diameter (mm) | 31.42mm |
| Overall Length (Inch) | 5.05" |
| Overall Length (mm) | 128.17mm |
| Pilot Length (Inch) | 2.281" |
| Pilot Length (mm) | 57.94mm |
| Shank Length (Inch) | 1.494" |
| Shank Length (mm) | 37.94mm |
| Seal Angle | 60 Degree |
| Spotface to Shoulder Length (mm) | 37.94mm |
| Seal Angle | 60 Degree |
| Series | 2 |
| Tube Size | -12 |
| Port Standard | SAE AS5202 |
| Port Thread Size | 1 1/16-12 UNJ-3B |
| Shank Type | Cylindrical |
| Pipe Tap Rear (Inch) | 1/4" |
