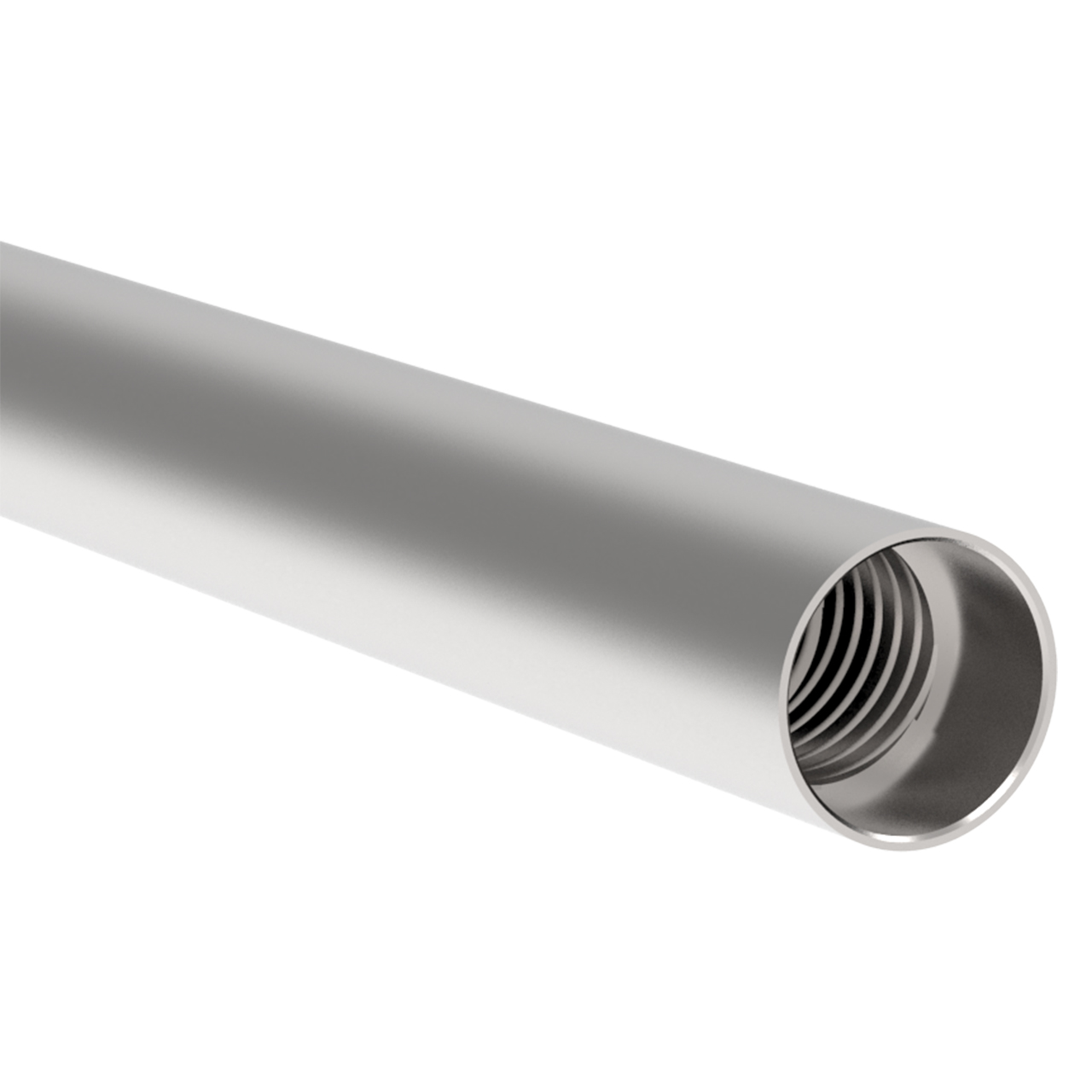

Allied Machine and Engineering BTAT805-102 | 805 Tube Size x 1.220" Diameter x 102.000" OAL Drill Tube

$1,084.00
interval quantity:
1
SKU:
23031165
UPC:
Weight:
14.03 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

The BT-A Drill is compatible with standard BTA-STS (Boring Trepanning Association) Systems.

Features:

  • The BT-A Drill includes laser clad bearing area for improved straightness, replaceable cutting edges to eliminate the need for resharpening and significantly increased penetration rates over brazed heads and traditional gun drills

Product Specifications
# MFGBTAT805-102
Maximum Diameter (Inch)1.220"
Maximum Diameter (mm)30.99mm
Minimum Diameter (Inch)1.13"
Minimum Diameter (mm)28.69mm
Outer Diameter (Inch)1.024"
Outer Diameter (mm)26mm
Overall length (Inch)102.000"
Overall length (mm)2591mm
Tube Size805
Inner Diameter (Inch)0.669"
Inner Diameter (mm)17mm

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
