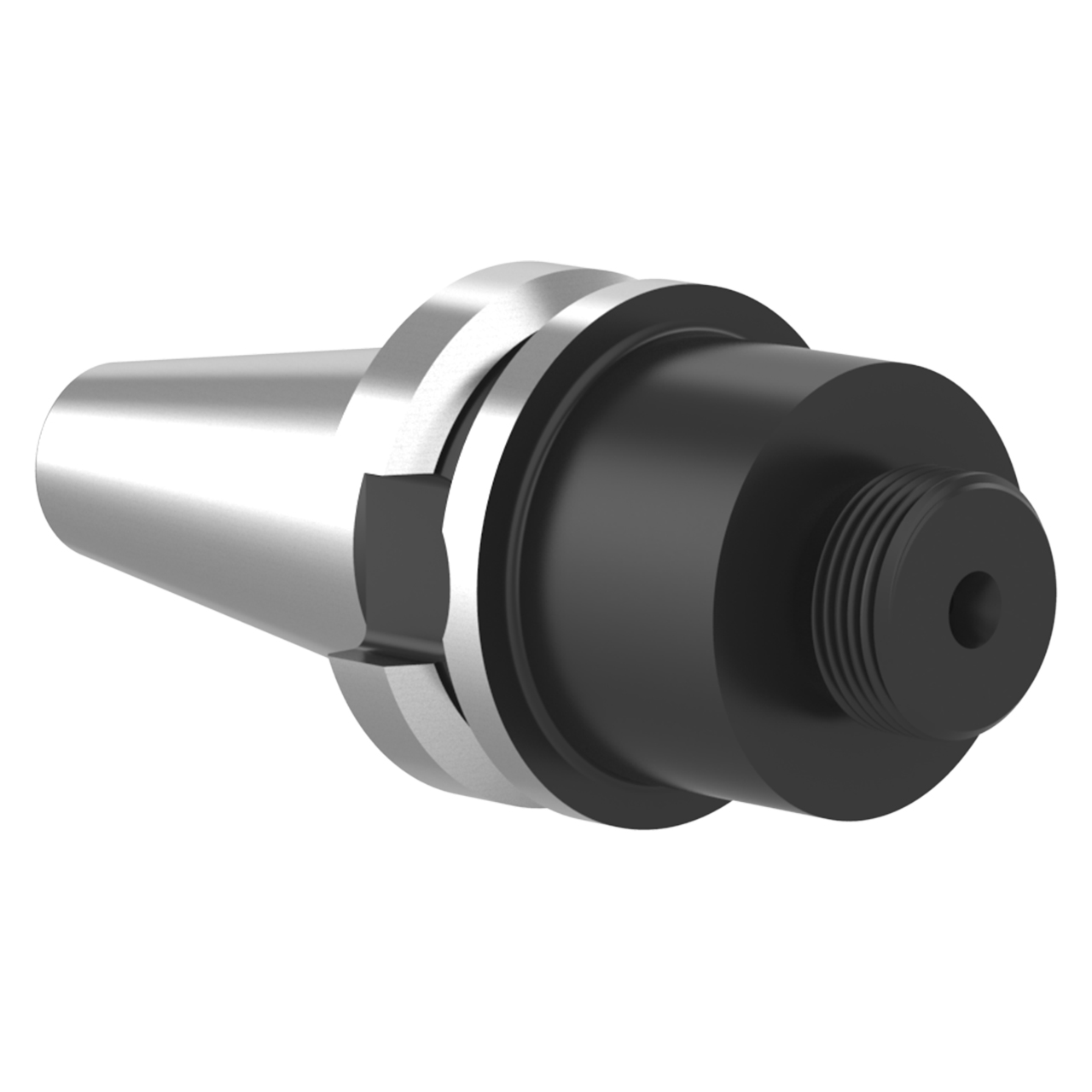

Allied Criterion boring systems are a complete solution for precision holemaking requirements. One can create a specialized assembly to meet application requirements using the large selection of standard components.
Features:
- CNC holders ground to AT3 taper tolerance
- Large mounting surface on CNC holders for rigidity and stability
- All CNC holders are through the spindle coolant capable
Product Specifications
| # MFG | CB1500-BT30 |
| Body Diameter (Inch) | 1.50" |
| Body Diameter (mm) | 38mm |
| Bore Depth (mm) | 22mm |
| Male Thread Size (Inch) | 7/8-20" |
| Gage Length (Inch) | 1.75" |
| Connection Style | Threaded |
| Industry Standard Shank | BT |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
