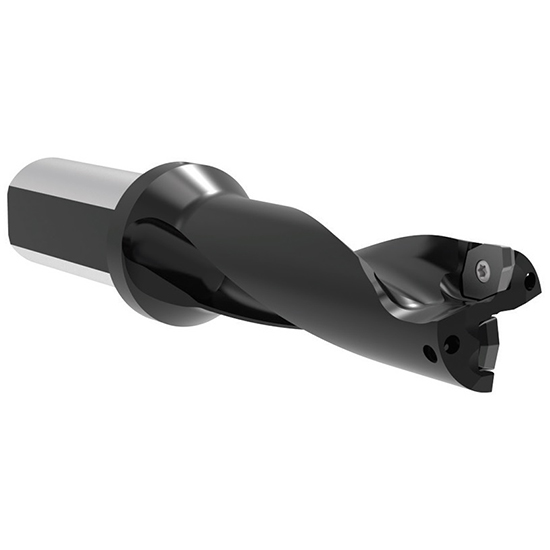

Allied Machine and Engineering D4062150M-100F | 86.00mm Drill Depth x 21.50mm Diameter x 25.40mm Shank 4XD Indexable Insert Drill

The 4TEX indexable carbide drill provides increased penetration rates on light duty machines due to the single effective design. With twisted coolant outlets and increased core strength, the design provides improved hole size and finish. The four-sided 4TEX inserts are designed to use two sides in the center pocket and two sides in the periphery pocket for an improved cost per hole.

Product Features:

• Stronger core
• Two twisted coolant holes
• Increased coolant volume
• Four-sided insert design
• Insert geometries specific for ISO materials
• Single effective cutting

Product Benefits

• Superior chip evacuation - provided by the 2 twisted coolant holes
• Improved hole size - from the stronger core and increased coolant volume
• Save money with longer tool life - provided by the 4-sided insert design
• Increased penetration rates - due to single effective cutting on light duty machines
• Simplified tooling selection - with ISO-specific insert geometry/coating combinations

The 4TEX indexable carbide drill provides increased penetration rates on light duty machines due to the single effective design. With twisted coolant outlets and increased core strength, the design provides improved hole size and finish. The four-sided 4TEX inserts are designed to use two sides in the center pocket and two sides in the periphery pocket for an improved cost per hole.

Features:

• Stronger core
• Two twisted coolant holes
• Increased coolant volume
• Four-sided insert design
• Insert geometries specific for ISO materials
• Single effective cutting
