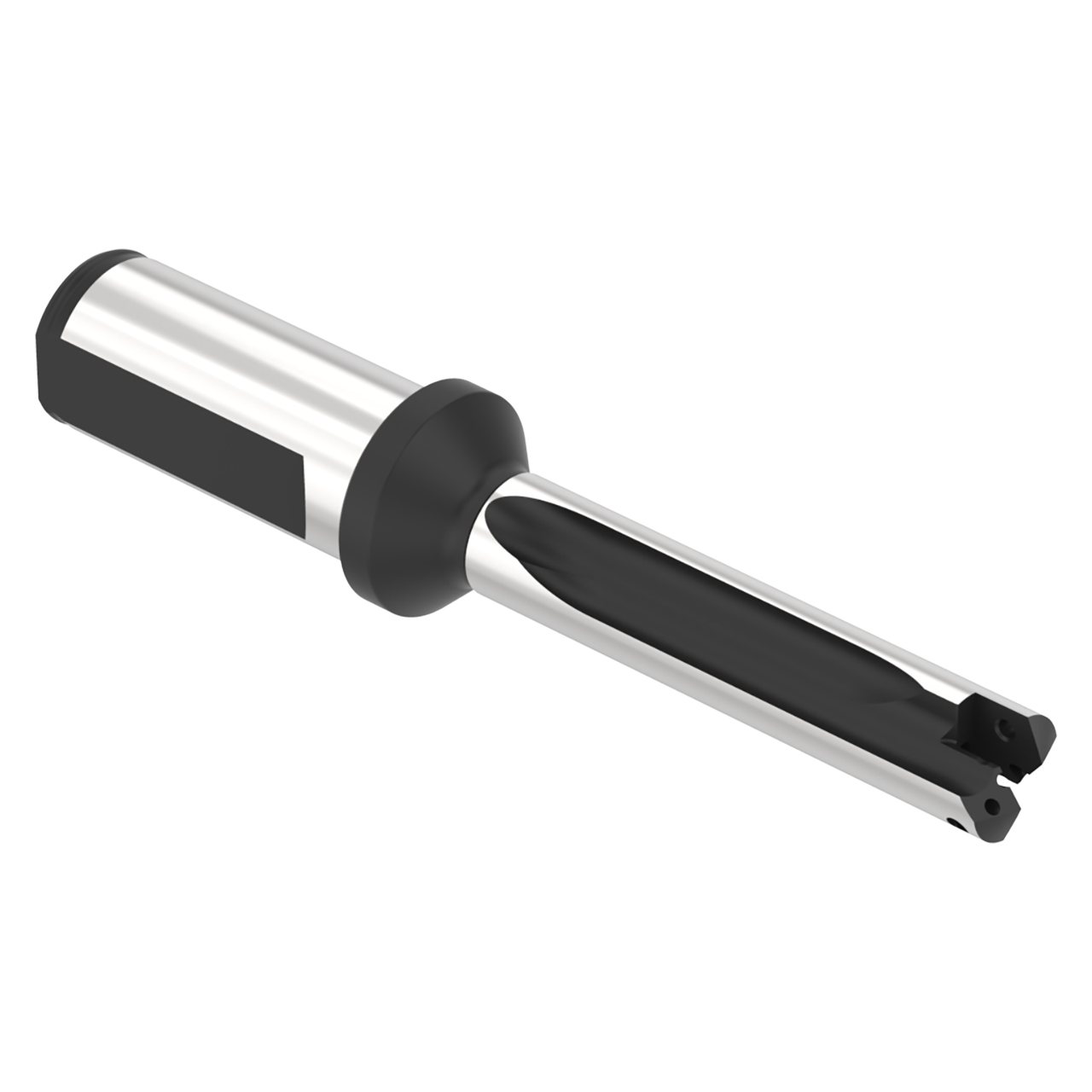

Allied Machine and Engineering HTA1B03-100F | 61/64" Diameter x 1" Shank 3XD Length Flanged Indexable Spade Drill

Description

The Allied Machine HTA1B03-100F is a premier drilling solution designed for high-performance metal removal in industrial manufacturing. As part of the advanced T-A Pro series, this 61/64 indexable spade drill offers exceptional penetration rates and tool life across a wide range of materials. The holder is engineered with a 3XD length-to-diameter ratio, providing a maximum drill depth of 2.475 inches, which is ideal for standard depth-to-diameter applications. This Allied T-A Pro 61/64 spade drill features a straight flute design that optimizes chip evacuation and maintains coolant flow directly to the cutting zone. The tool is equipped with a 1-inch flanged shank, offering a rigid connection to the machine spindle that significantly reduces vibration and runout. Using this 61/64 flanged indexable spade drill ensures precise hole diameters and improved surface finishes compared to traditional twist drills. The Allied Machine 3XD spade drill holder is built from high-strength tool steel to withstand the axial forces and torque associated with high-speed drilling. With a body length of 3.973 inches and an overall length of 6.253 inches, the HTA1B03-100F T-A Pro drill holder provides the necessary reach while maintaining the structural integrity required for heavy-duty production. This 1 inch shank indexable spade drill is versatile enough to accommodate a diameter range from 0.75" to 0.960", allowing for flexibility within your tooling library. The 3XD T-A Pro drilling system holder is specifically calibrated to work with the latest T-A Pro inserts, which feature advanced geometries and coatings for superior chip formation. Integrating this high-capacity drill into your workflow allows for shorter cycle times and reduced cost-per-hole in high-volume operations. Whether you are working in general fabrication or specialized engineering, this tool holder delivers the reliability and accuracy expected from Allied Machine and Engineering.

Product Features and Benefits

High-Performance T-A Pro Series

The Allied Machine HTA1B03-100F is part of a next-generation system, making it a highly efficient 61/64 indexable spade drill for modern CNC centers.

Rigid 1-Inch Flanged Shank

This 61/64 flanged indexable spade drill features a flanged design that maximizes stability and prevents the tool from pulling out under high-torque conditions.

Optimized 3XD Drill Depth

The Allied Machine 3XD spade drill holder provides a 2.475-inch drilling depth, offering the perfect balance of reach and rigidity for medium-depth holes.

Efficient Straight Flute Geometry

The HTA1B03-100F T-A Pro drill holder utilizes straight flutes to ensure consistent chip flow and structural strength during aggressive penetration cycles.

Versatile Diameter Range Compatibility

This 3XD T-A Pro drilling system holder supports diameters from 0.75" to 0.960", providing a versatile 1 inch shank indexable spade drill solution for multiple tasks.

Frequently Asked Questions

What is the maximum drilling depth for the Allied Machine HTA1B03-100F?

This 3XD length type holder offers a maximum drill depth of 2.475 inches, making it a reliable 61/64 indexable spade drill for standard applications.

What type of shank does the Allied T-A Pro 61/64 spade drill use?

It features a 1-inch diameter flanged shank, which provides the necessary rigidity for high-speed 61/64 flanged indexable spade drill operations.

Which series does the Allied Machine 3XD spade drill holder belong to?

The HTA1B03-100F T-A Pro drill holder is part of the Series 1 T-A Pro line, designed for superior hole-making efficiency and tool life.

Can this 1 inch shank indexable spade drill be used for different hole sizes?

Yes, this holder is compatible with a minimum diameter of 0.75" and a maximum diameter of 0.960", covering a wide variety of drilling needs.

How does the 3XD T-A Pro drilling system holder improve chip evacuation?

The straight flute design of the Allied Machine HTA1B03-100F allows chips to be flushed out efficiently when used with through-tool coolant systems.
