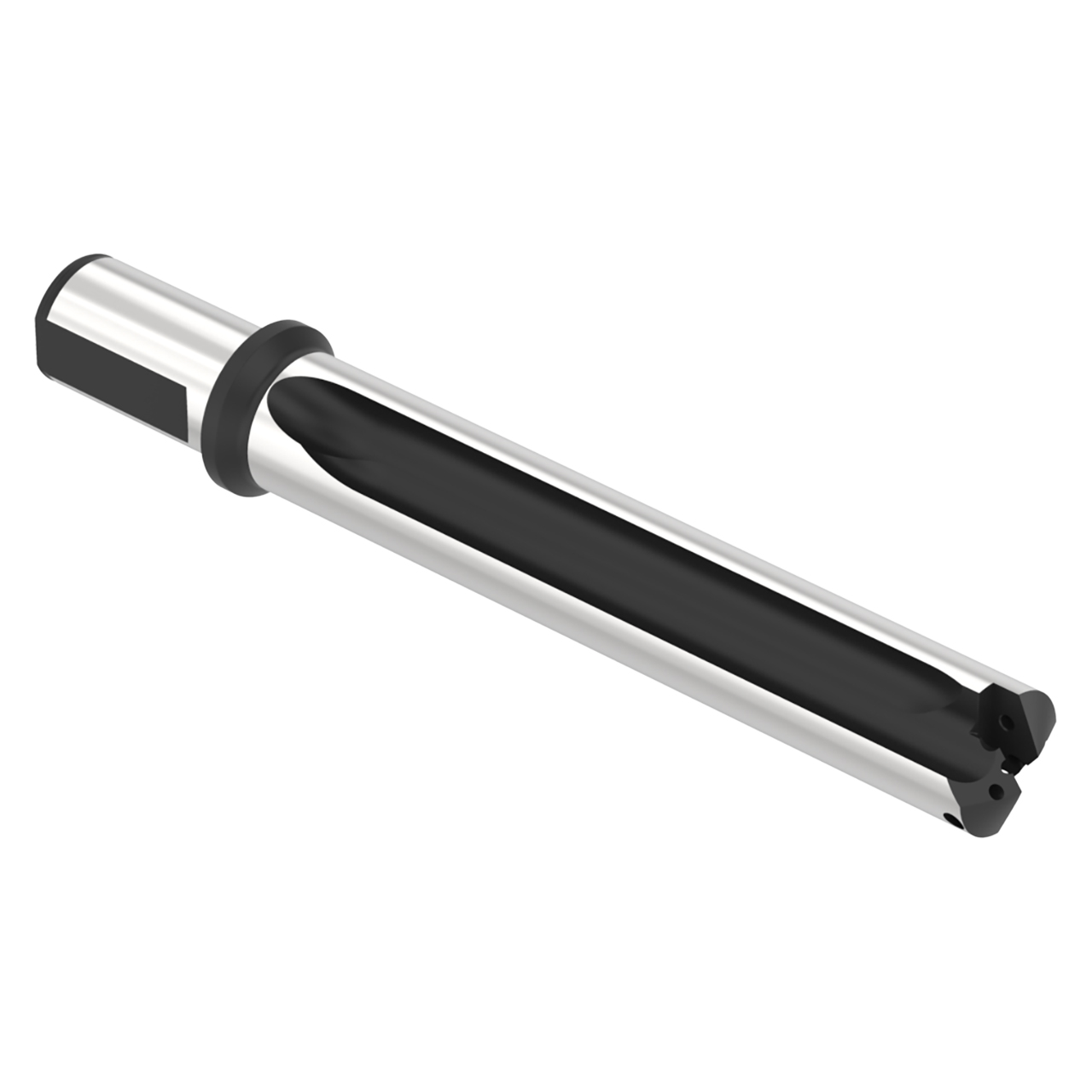

Allied Machine and Engineering HTA3C05-150F | 1-7/8" Diameter x 1-1/2" Shank 5XD Length Flanged Indexable Spade Drill

$398.00 $358.20
(You save $39.80)
interval quantity:
1
SKU:
23143109
UPC:
Weight:
5.31 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

The T-A Pro is the culmination of years of application wins and losses, taking what was typically known as a general purpose tool and making it the go-to for all applications, providing a wider range and better cost per hole than competitive high performance tools.

Features:

  • The advanced T-A Pro insert combines a coating and geometry specifically designed to achieve optimal results in ISO material drilling applications
  • T-A Pro inserts can be used with the previous T-A insert holders

Product Specifications
# MFGHTA3C05-150F
Body Length (Decimal Inch)10.325"
Drill Depth (Decimal Inch)8.09"
Flute TypeStraight
Length Type5XD
Maximum Diameter (Decimal Inch)1.882"
Minimum Diameter (Decimal Inch)1.614"
Overall Length (Decimal Inch)13.013"
Series3
Shank Diameter (Inch)1-1/2"
Shank Length (Decimal Inch)2.688"
Shank TypeFlanged
