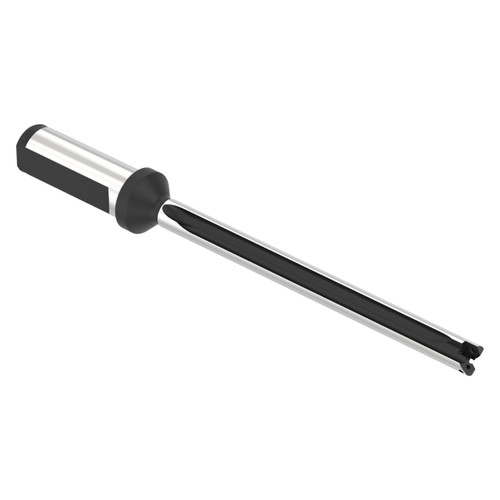

Allied Machine and Engineering HTAZA15-20FM | 12.69mm Diameter x 20.00mm Shank 15XD Length Flanged Indexable Spade Drill

SKU: 23142727 Weight: 0.53 LBS Minimum Purchase: 1 unit
UPC:
$527.00
Shipping: Free Shipping

About This Item

The T-A Pro is the culmination of years of application wins and losses, taking what was typically known as a general purpose tool and making it the go-to for all applications, providing a wider range and better cost per hole than competitive high performance tools.

Features:

  • The advanced T-A Pro insert combines a coating and geometry specifically designed to achieve optimal results in ISO material drilling applications
  • T-A Pro inserts can be used with the previous T-A insert holders

Product Specifications
# MFGHTAZA15-20FM
Body Length (mm)212.86mm
Drill Depth (mm)181.36mm
Flute TypeStraight
Length Type15XD
Maximum Diameter (mm)12.69mm
Minimum Diameter (mm)11.09mm
Overall Length (mm)262.88mm
SeriesZ
Shank Diameter (mm)20mm
Shank Length (mm)50.01mm
Shank TypeFlanged
