The XT Pro holders have been redesigned to provide enhanced productivity and increased effectiveness of the XT Pro inserts.
Features:

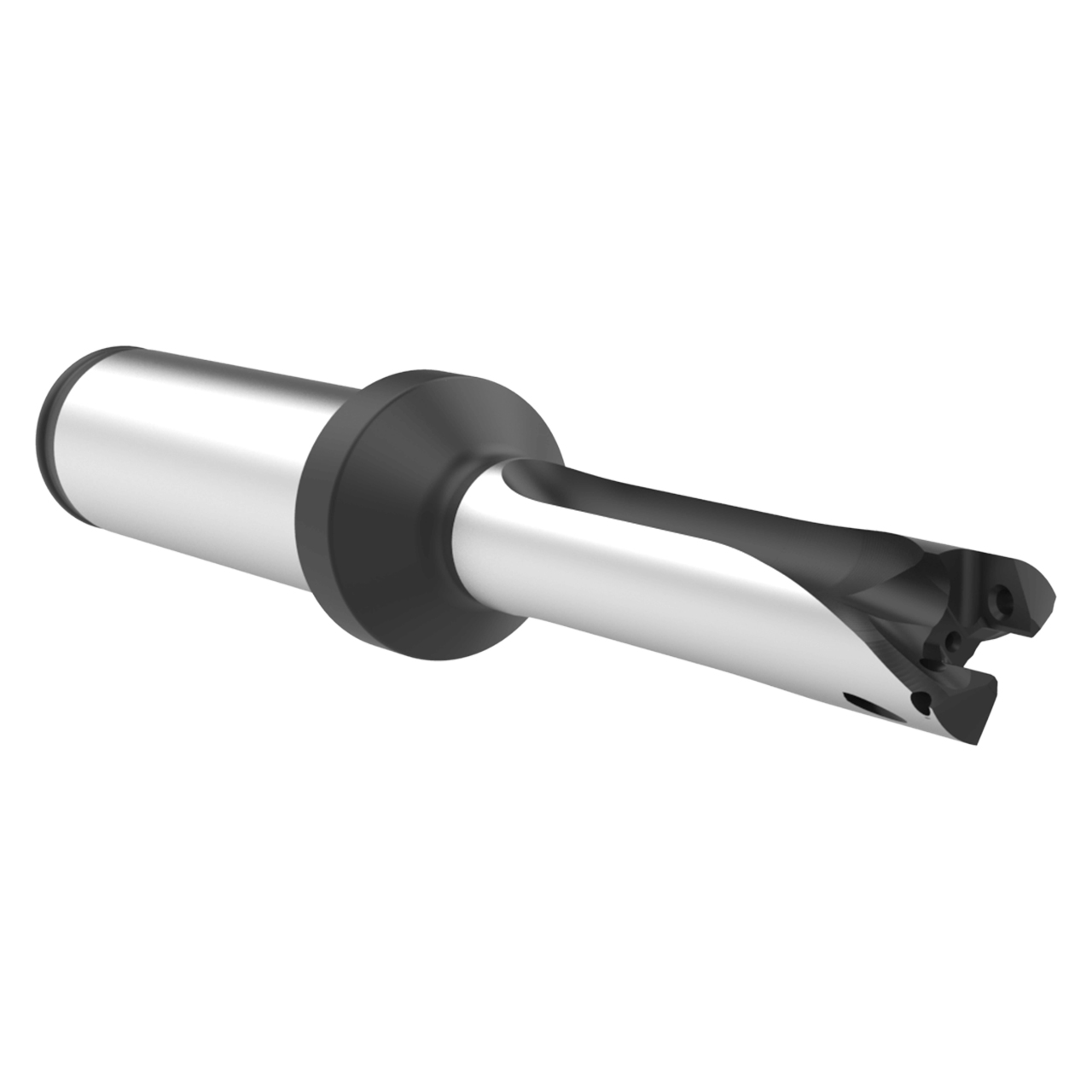

| # MFG | HXT0311S-063C |
| Body Length (Inch) | 2.457" |
| Coolant Inlet Style Rear | TSC |
| Deep Hole | No |
| Drill Depth (Inch) | 1-27/64" |
| Flat | No |
| Length Type | 3xD |
| Maximum Diameter (Inch) | 0.4723" |
| Maximum Diameter (mm) | 11.99mm |
| Minimum Diameter (Inch) | 0.4331" |
| Minimum Diameter (mm) | 11mm |
| Overall Length (Inch) | 4 - 13/32" |
| Series | 11 |
| Shank Diameter (Inch) | 5/8" |
| Shank Length (Inch) | 1-7/8" |
| Shank type | Flanged |
| Tool Reference Length (Decimal Inch) | 2-17/32" |
