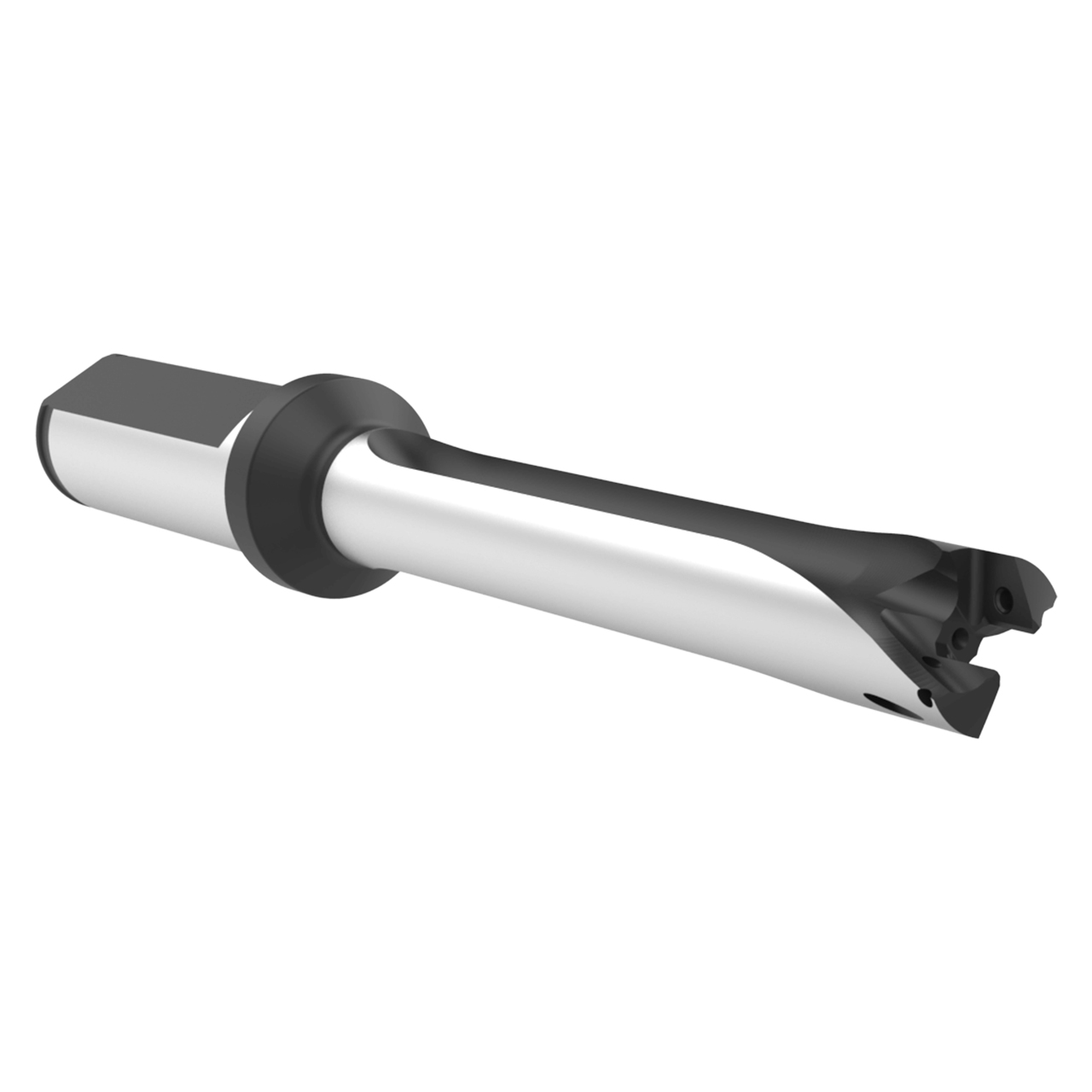

Allied Machine and Engineering HXT0515S-20FM | 15.00mm Diameter x 20.00mm Shank 5xD Flanged 15 Series Indexable Spade Drill

SKU: 23035806 Weight: 0.50 LBS Minimum Purchase: 1 unit
UPC:
$390.00 $366.60
(You save $23.40)
Shipping: Calculated at Checkout

About This Item

The XT Pro holders have been redesigned to provide enhanced productivity and increased effectiveness of the XT Pro inserts.

Features:

  • The XT Pro holder features an increased flute area for chip evacuation
  • The holder also has additional coolant to the cutting zone to increase insert life and drill stability

Product Specifications
# MFGHXT0515S-20FM
Body Length (Inch)4.214"
Coolant Inlet Style RearTSC
Deep HoleNo
Drill Depth (mm)80mm
FlatYes
Length Type5xD
Maximum Diameter (Inch)0.6298"
Maximum Diameter (mm)15.99mm
Minimum Diameter (Inch)0.5906"
Minimum Diameter (mm)15mm
Overall Length (mm)159.5mm
Series15
Shank Diameter (mm)20mm
Shank Length (mm)50mm
Shank typeFlanged
Tool Reference Length (mm)109.5mm
