The XT Pro holders have been redesigned to provide enhanced productivity and increased effectiveness of the XT Pro inserts.
Features:

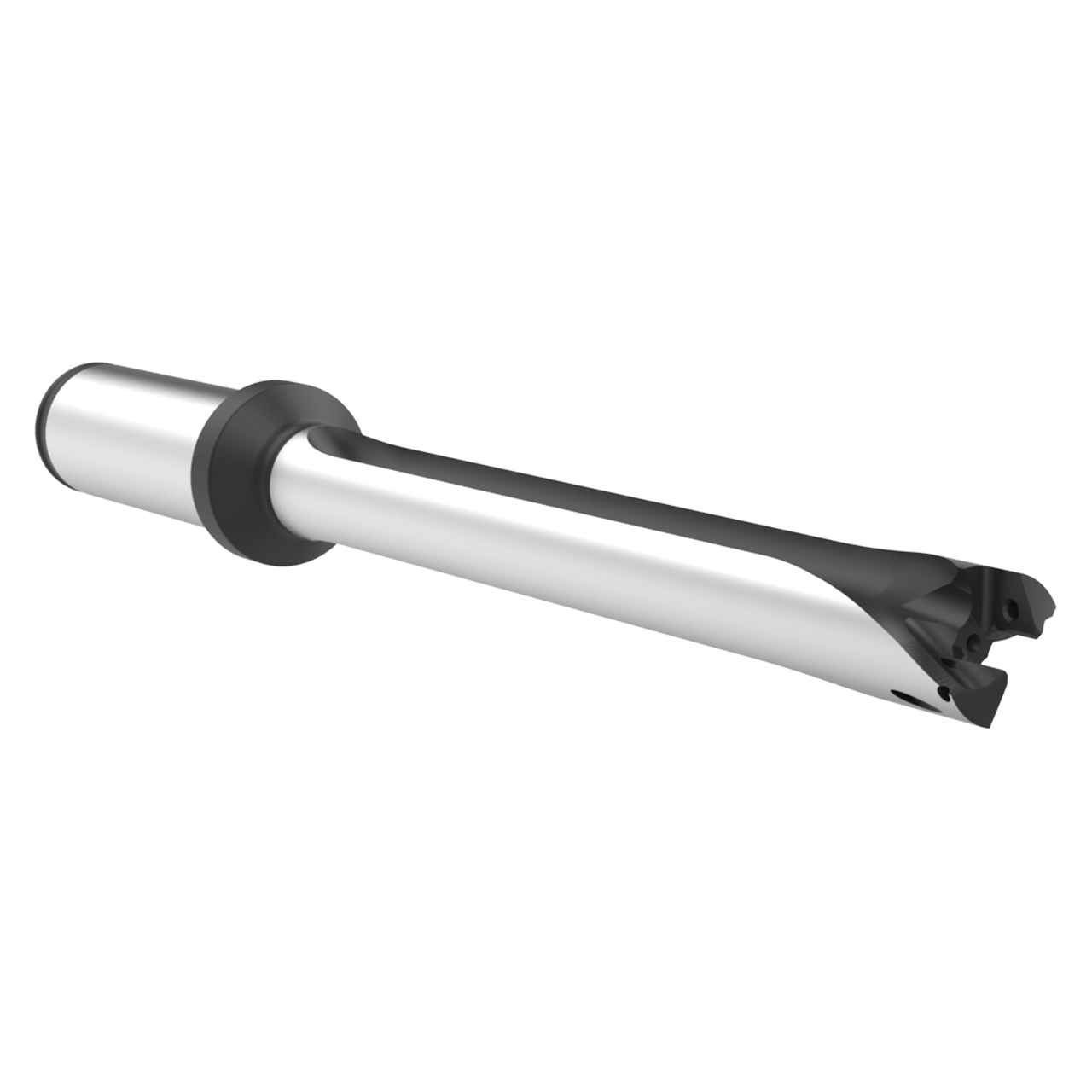

| # MFG | HXT0715S-075C |
| Body Length (Inch) | 5.47" |
| Coolant Inlet Style Rear | TSC |
| Deep Hole | No |
| Drill Depth (Inch) | 4-27/64" |
| Flat | No |
| Length Type | 7xD |
| Maximum Diameter (Inch) | 0.6298" |
| Maximum Diameter (mm) | 15.99mm |
| Minimum Diameter (Inch) | 0.5906" |
| Minimum Diameter (mm) | 15mm |
| Overall Length (Inch) | 7 - 19/32" |
| Series | 15 |
| Shank Diameter (Inch) | 3/4" |
| Shank Length (Inch) | 2-1/32" |
| Shank type | Flanged |
| Tool Reference Length (Decimal Inch) | 5.571" |
