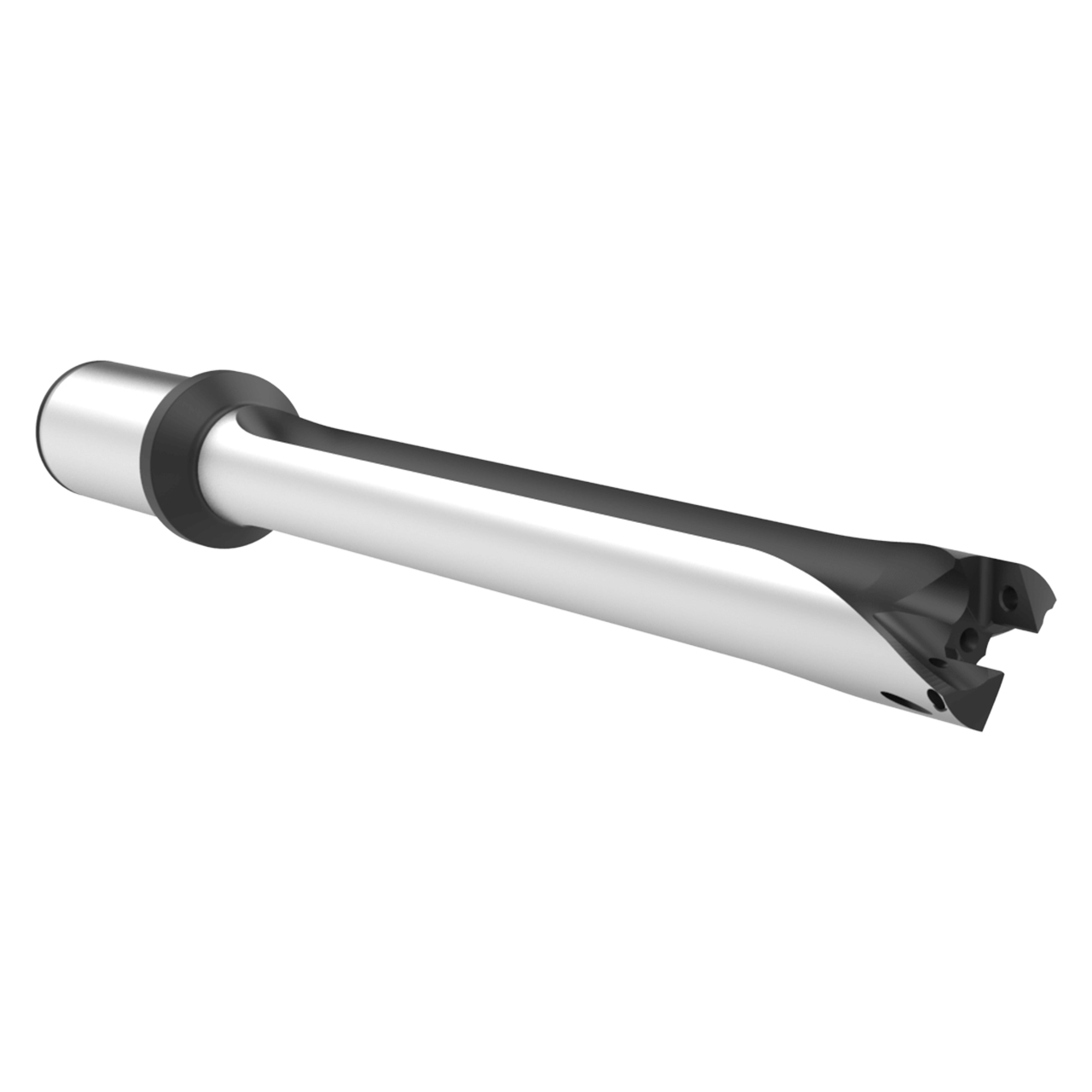

Allied Machine and Engineering HXT0726S-125C | 26.00mm Diameter x 1-1/4" Shank 7xD Flanged 26 Series Indexable Spade Drill

$557.00 $523.58
(You save $33.42)
Brand:
Allied Machine and Engineering
Series:
26
Shank Type:
Cylindrical
Shank Diameter (Inch):
1-1/4"
Overall Length (Decimal Inch):
12.0200"
Flute Type:
Straight
interval quantity:
1
SKU:
23035725
UPC:
Weight:
2.26 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

The XT Pro holders have been redesigned to provide enhanced productivity and increased effectiveness of the XT Pro inserts.

Features:

  • The XT Pro holder features an increased flute area for chip evacuation
  • The holder also has additional coolant to the cutting zone to increase insert life and drill stability

Product Specifications
# MFGHXT0726S-125C
Body Length (Inch)9.63"
Coolant Inlet Style RearTSC
Deep HoleNo
Drill Depth (Inch)7-63/64"
FlatNo
Length Type7xD
Maximum Diameter (Inch)1.1416"
Maximum Diameter (mm)28.99mm
Minimum Diameter (Inch)1.0236"
Minimum Diameter (mm)26mm
Overall Length (Inch)12.02"
Series26
Shank Diameter (Inch)1-1/4"
Shank Length (Inch)2-9/32"
Shank typeFlanged
Tool Reference Length (Decimal Inch)9.74"

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
