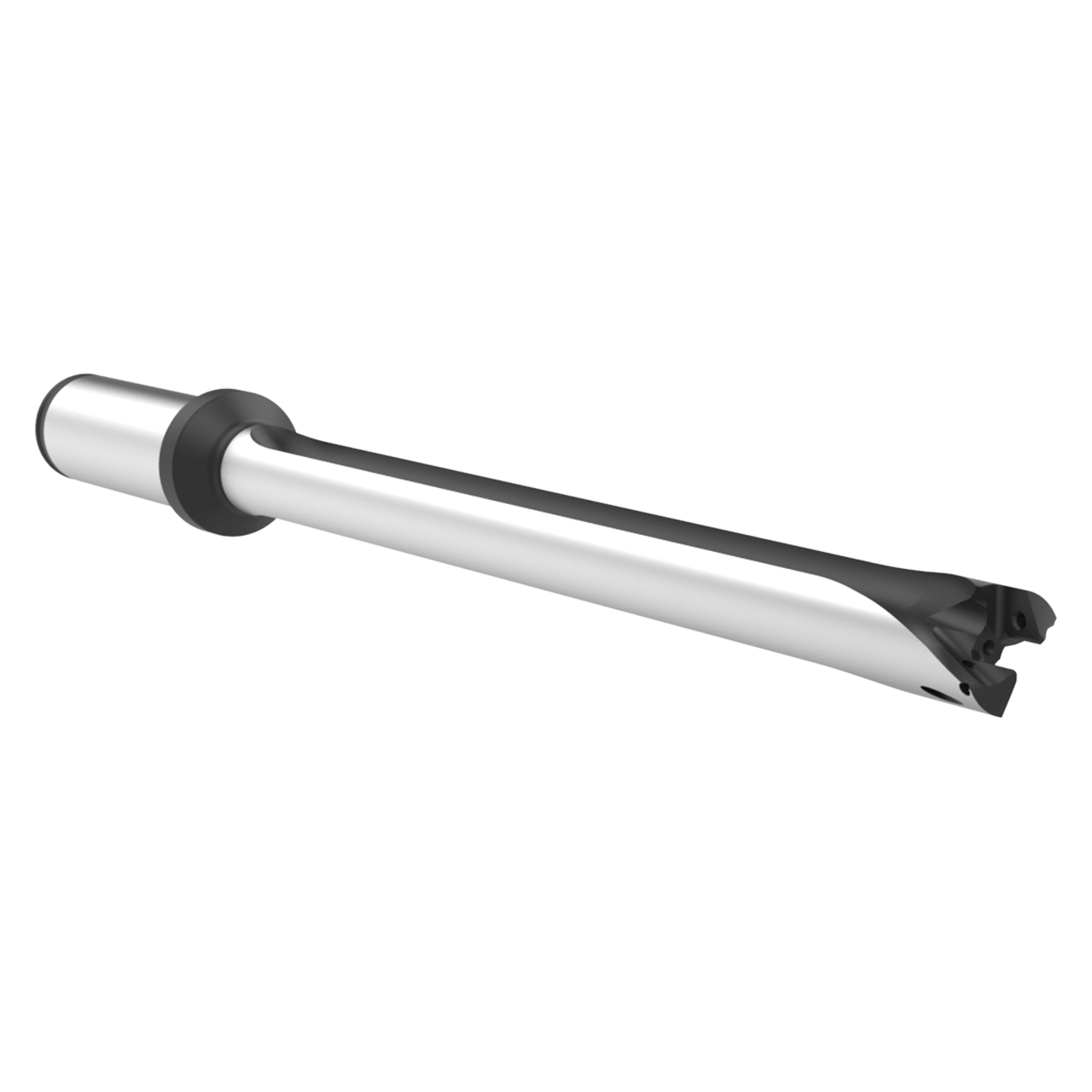

The XT Pro holders have been redesigned to provide enhanced productivity and increased effectiveness of the XT Pro inserts.
Features:
- The XT Pro holder features an increased flute area for chip evacuation
- The holder also has additional coolant to the cutting zone to increase insert life and drill stability
Product Specifications
| # MFG | HXT1015S-20CM |
| Body Length (Inch) | 7.362" |
| Coolant Inlet Style Rear | TSC |
| Deep Hole | Yes |
| Drill Depth (mm) | 159.9mm |
| Flat | No |
| Length Type | 10xD |
| Maximum Diameter (Inch) | 0.6298" |
| Maximum Diameter (mm) | 15.99mm |
| Minimum Diameter (Inch) | 0.5906" |
| Minimum Diameter (mm) | 15mm |
| Overall Length (mm) | 239.5mm |
| Series | 15 |
| Shank Diameter (mm) | 20mm |
| Shank Length (mm) | 50mm |
| Shank type | Flanged |
| Tool Reference Length (mm) | 189.5mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Series:
15
Minimum Drill Diameter (Inch):
19/32"
Minimum Drill Diameter (Decimal Inch):
0.5906"
Minimum Drill Diameter (mm):
15.00mm
Maximum Drill Diameter (Inch):
5/8"
Maximum Drill Diameter (Decimal Inch):
0.6298"
Maximum Drill Diameter (mm):
15.99mm
Shank Type:
Flanged
Shank Diameter (Inch):
25/32"
Shank Diameter (Decimal Inch):
0.7900"
Shank Diameter (mm):
20.00mm
Overall Length (Inch):
9-27/64"
Overall Length (Decimal Inch):
9.4300"
Overall Length (mm):
239.50mm
Flute Type:
Straight
interval quantity:
1
