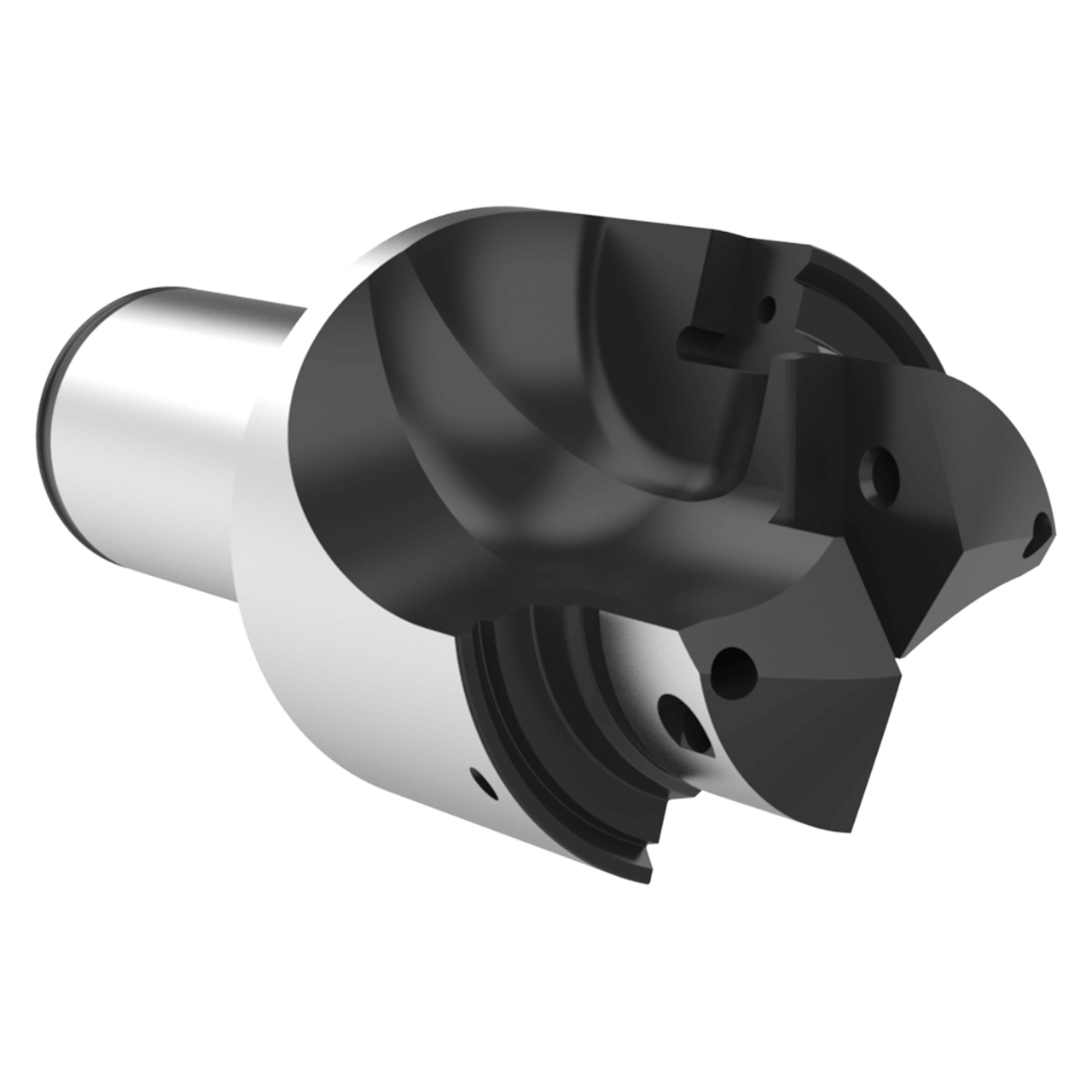

Allied Machine and Engineering I6149-20R3-32FM | -20 Size x 1.575" Diameter x 1.26" Shank x 5.64" OAL 3 Series Indexable Porting Tool

$713.00
Brand:
Allied Machine and Engineering
Port Standard Designation:
ISO 6149
Port Thread Size:
M42 X 2
Tube Dash Number:
-20
Pilot Diameter (Inch):
1-37/64"
Pilot Diameter (Decimal Inch):
1.5750"
Pilot Diameter (mm):
40.00mm
Spotface Diameter (Inch):
2-23/64"
Spotface Diameter (Decimal Inch):
2.3620"
Spotface Diameter (mm):
60.00mm
Pilot Length (Inch):
57/64"
Pilot Length (Decimal Inch):
0.8950"
Pilot Length (mm):
22.70mm
interval quantity:
1
SKU:
23029290
UPC:
Weight:
2.34 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Single Operation Port Hole Drilling Solutions. Allied's revolutionary port hole drilling system combines two manufacturing functions. The patent-pending design provides excellent repeatability and surface finish while eliminating lost production time due.

Features:

  • Produced to strict manufacturing tolerances
  • Drill and finish forms port in one operation

Product Specifications
# MFGI6149-20R3-32FM
Pilot Diameter (Inch)1.575"
Pilot Diameter (mm)40mm
Spotface Diameter (Inch)2.362"
Spotface Diameter (mm)60mm
Shank Diameter (Inch)1.26"
Shank Diameter (mm)32mm
Seal Angle Diameter (Inch)1.749"
Seal Angle Diameter (mm)44.4mm
Overall Length (Inch)5.64"
Overall Length (mm)143.3mm
Seal Angle Length (Inch)0.13"
Seal Angle Length (mm)3.5mm
Pilot Length (Inch)0.895"
Pilot Length (mm)22.7mm
Shank Length (Inch)2.58"
Shank Length (mm)65.5mm
Spotface to Shoulder Length (Inch)1.828"
Spotface to Shoulder Length (mm)46.4mm
Seal Angle15 Degree
Series3
Tube Size-20
Port StandardISO 6149
Port Thread SizeM42 X 2
Shank TypeCylindrical
