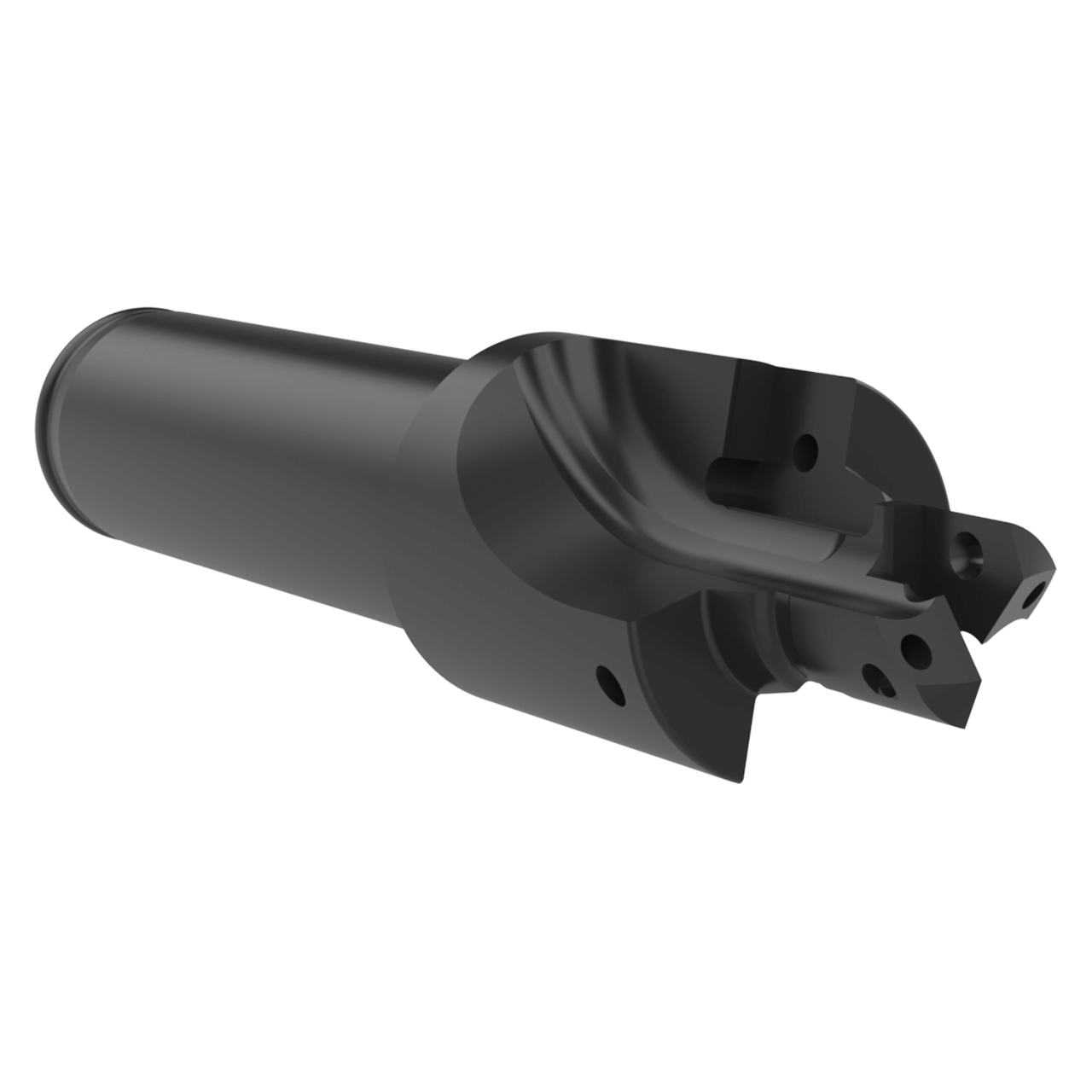

Allied Machine and Engineering J1926-04Y-063F | -4 Size x 0.386" Diameter x 0.625" Shank x 3.402" OAL Y Series Indexable Porting Tool

$557.00
Brand:
Allied Machine and Engineering
Port Standard Designation:
SAE J-1926
Port Thread Size:
7/16-20 UNF-2B
Tube Dash Number:
-4
Pilot Diameter (Inch):
25/64"
Pilot Diameter (Decimal Inch):
0.3860"
Pilot Diameter (mm):
9.80mm
Spotface Diameter (Inch):
27/32"
Spotface Diameter (Decimal Inch):
0.8400"
Spotface Diameter (mm):
21.30mm
Pilot Length (Inch):
35/64"
Pilot Length (Decimal Inch):
0.5510"
Pilot Length (mm):
14.00mm
interval quantity:
1
SKU:
23029273
UPC:
Weight:
0.25 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Single Operation Port Hole Drilling Solutions. Allied's revolutionary port hole drilling system combines two manufacturing functions. The patent-pending design provides excellent repeatability and surface finish while eliminating lost production time due.

Features:

  • Produced to strict manufacturing tolerances
  • Drill and finish forms port in one operation

Product Specifications
# MFGJ1926-04Y-063F
Pilot Diameter (Inch)0.386"
Pilot Diameter (mm)9.8mm
Spotface Diameter (Inch)0.84"
Spotface Diameter (mm)21.3mm
Shank Diameter (Inch)0.625"
Shank Diameter (mm)15.9mm
Seal Angle Diameter (Inch)0.49"
Seal Angle Diameter (mm)12.5mm
Overall Length (Inch)3.402"
Overall Length (mm)86.4mm
Seal Angle Length (Inch)0.106"
Seal Angle Length (mm)3.5mm
Pilot Length (Inch)0.551"
Pilot Length (mm)14mm
Shank Length (Inch)1.875"
Shank Length (mm)47.6mm
Spotface to Shoulder Length (Inch)0.896"
Spotface to Shoulder Length (mm)22.8mm
Seal Angle12 Degree
SeriesY
Tube Size-4
Port StandardSAE J-1926
Port Thread Size7/16-20 UNF-2B
Shank TypeCylindrical
Pipe Tap Rear (Inch)1/16"
