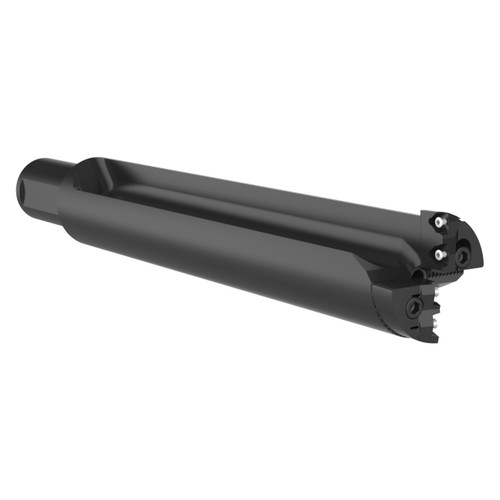

The Revolution Drill has an innovative design that allows for adjustability of 0.200" (5.1mm) on diameter, eliminating the need for specials and/or subsequent boring operations.
Features:
- Drills from solid-no pilot required
- Adjustable up to 0.200" (5mm) on diameter
- Replaceable cartridges provide re-buildable function
Product Specifications
| # MFG | R34X45-40M |
| Drill depth (mm) | 229.20mm |
| Maximum Diameter (mm) | 50.8mm |
| Minimum Diameter (mm) | 47.6mm |
| Shank Diameter (mm) | 40.00mm |
| Length Type | 4.5 X D |
| Overall Length (mm) | 321.7mm |
| Series | R34 |
| Quantity of Inserts | 4 |
| Coolant | Yes |
| Flute Type | Straight |
| Shank type | Straight |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Drill Style:
R34
Drill Diameter (Decimal Inch):
2.0000"
Drill Diameter (mm):
50.80mm
Maximum Drill Depth (Inch):
9-1/32"
Maximum Drill Depth (Decimal Inch):
9.0236"
Maximum Drill Depth (mm):
229.20mm
Shank Type:
Straight
Through Coolant:
Yes
Drill Depth by Diameter Ratio:
4.5 X D
