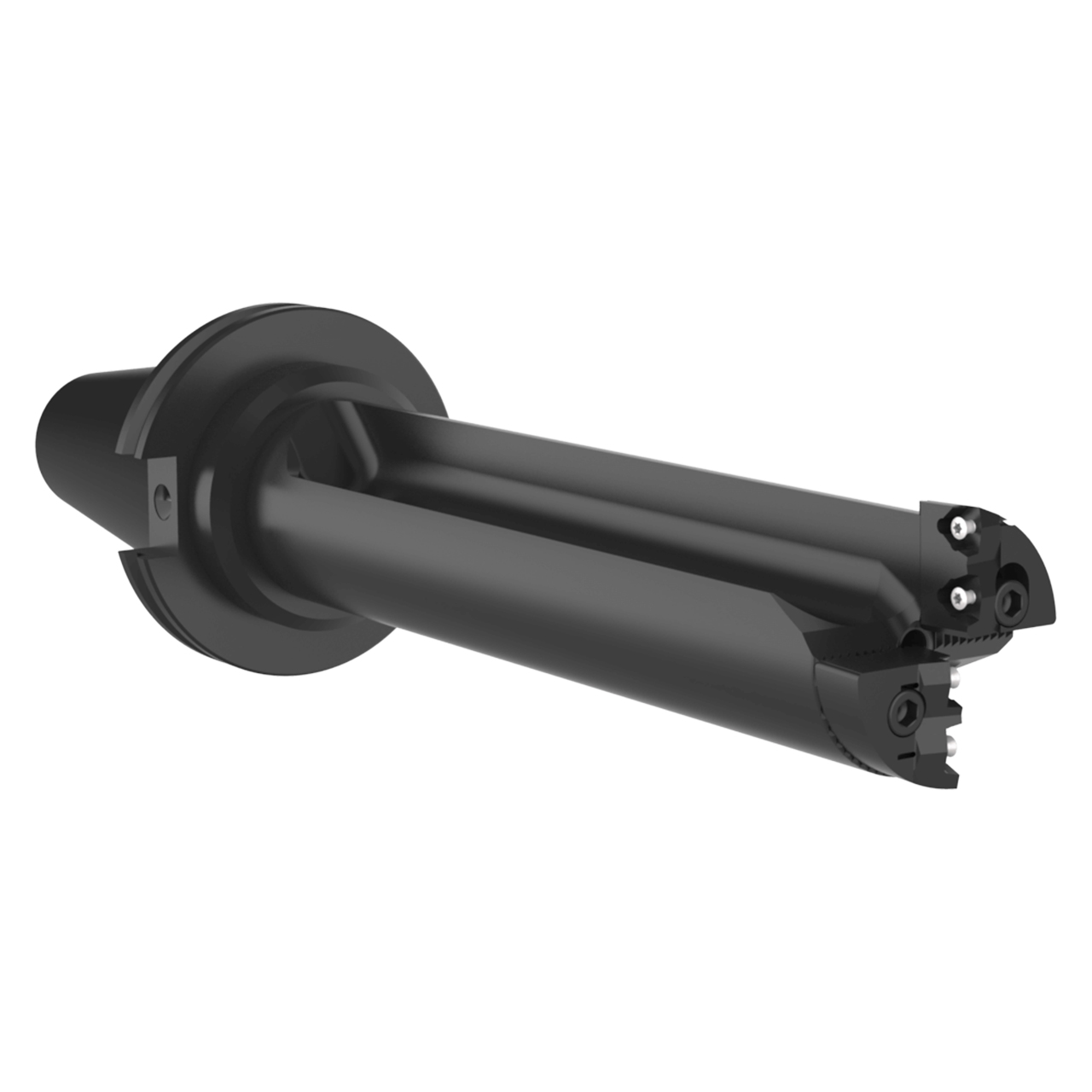

The Revolution Drill has an innovative design that allows for adjustability of 0.200" (5.1mm) on diameter, eliminating the need for specials and/or subsequent boring operations.
Features:
| # MFG | R38X35-CV50 |
| Drill depth (Inch) | 8-29/64" |
| Maximum Diameter (Inch) | 2.400" |
| Minimum Diameter (Inch) | 2.20" |
| Length Type | 3.5 X D |
| Series | R38 |
| Quantity of Inserts | 4 |
| Coolant | Yes |
| Flute Type | Straight |
| Shank type | CV 50 |
