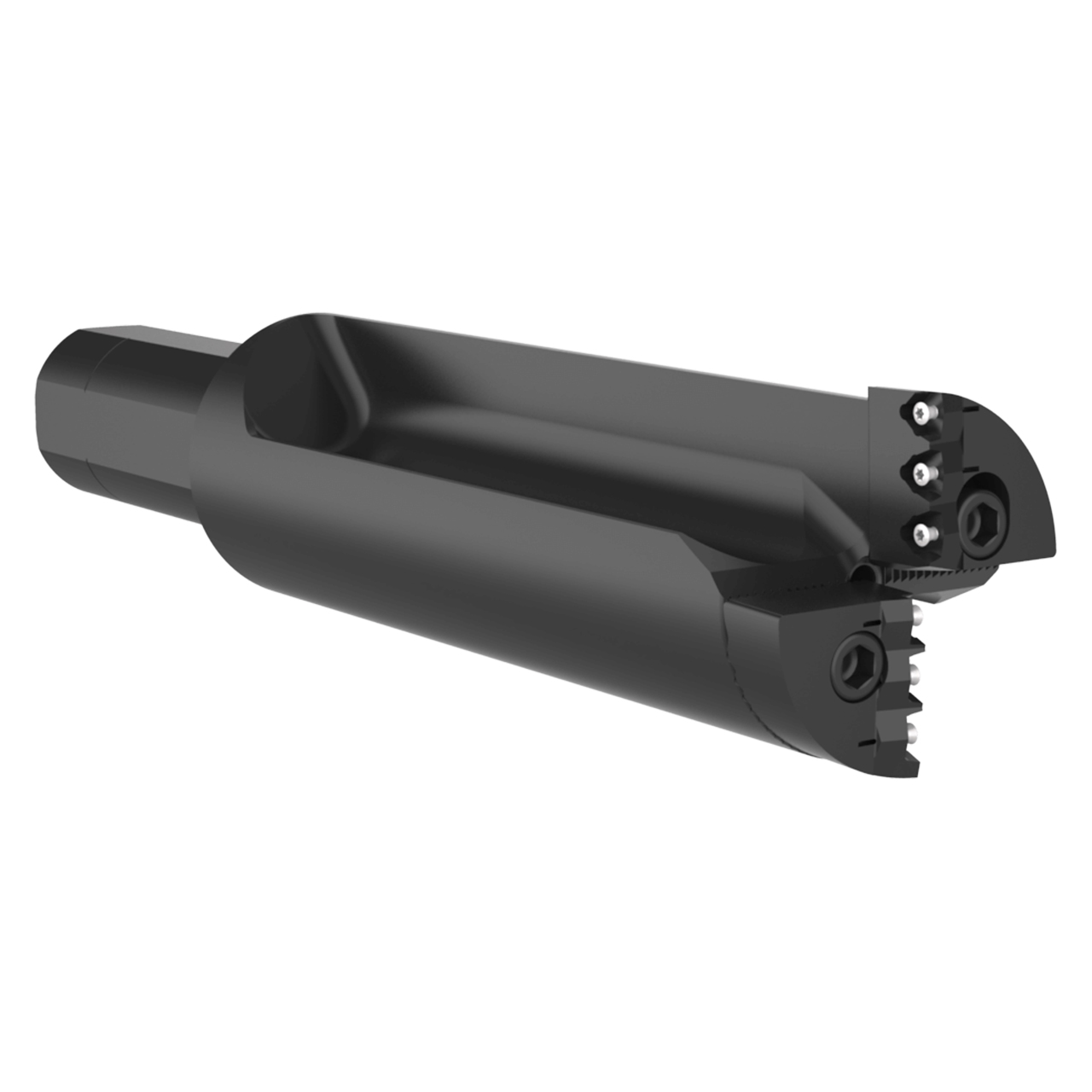

The Revolution Drill has an innovative design that allows for adjustability of 0.200" (5.1mm) on diameter, eliminating the need for specials and/or subsequent boring operations.
Features:
| # MFG | R48X25-200L |
| Drill depth (Inch) | 7-29/32" |
| Maximum Diameter (Inch) | 3.200" |
| Minimum Diameter (Inch) | 3.00" |
| Shank Diameter (Inch) | 2" |
| Length Type | 2.5 X D |
| Overall Length (Inch) | 13-49/64" |
| Series | R48 |
| Quantity of Inserts | 6 |
| Coolant | Yes |
| Flute Type | Straight |
| Shank type | Straight |
| Pipe tap rear (Inch) | 1/4 NPT |
