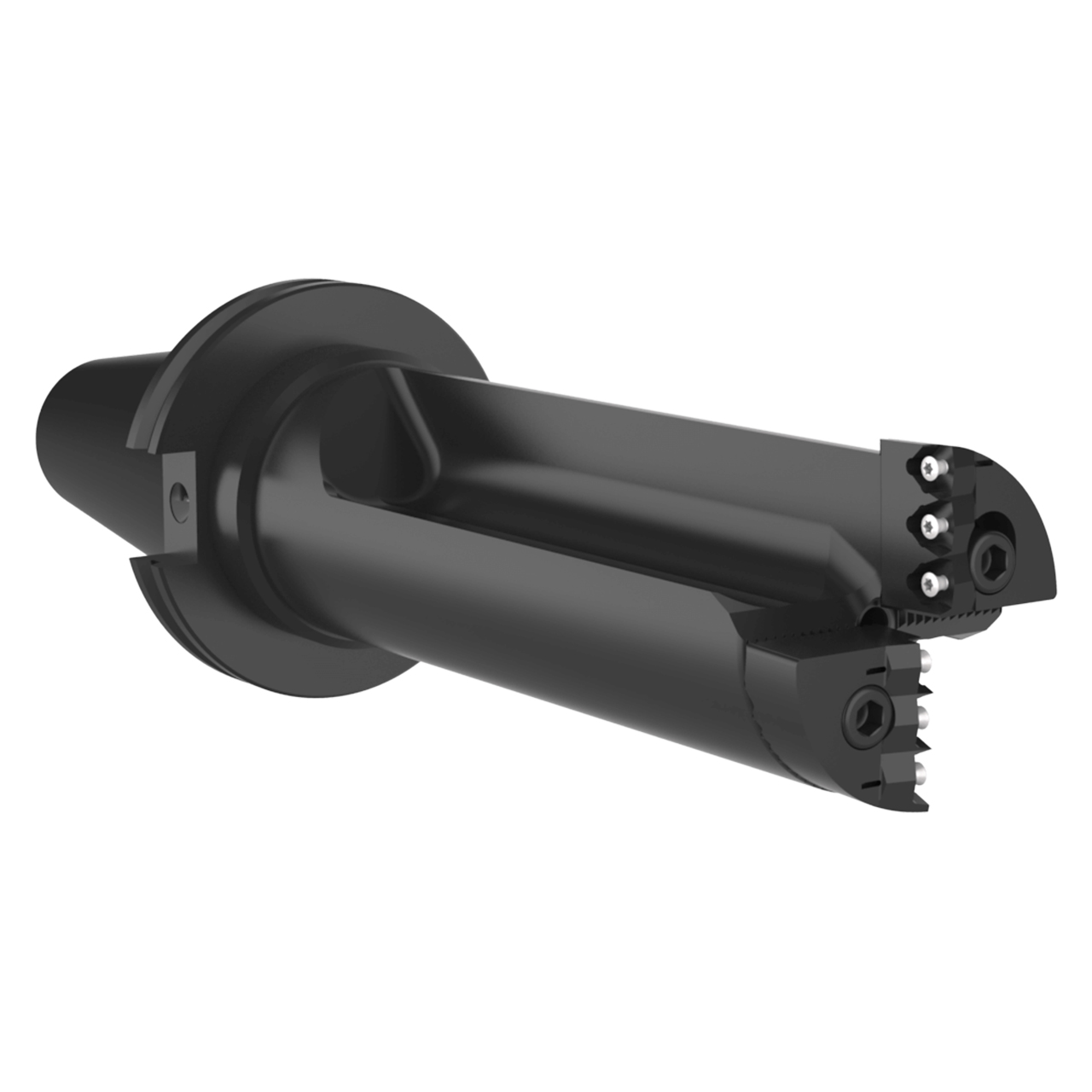

Allied Machine and Engineering SP44X22-CV50 | 6-1/4" Depth x 2.800" Diameter x 2.2XD Length R44 Series Indexable Insert Drill

$1,507.00 $1,431.65
(You save $75.35)
Brand:
Allied Machine and Engineering
Drill Style:
R44
Drill Diameter (Inch):
2-51/64"
Drill Diameter (Decimal Inch):
2.7992"
Drill Diameter (mm):
71.12mm
Maximum Drill Depth (Inch):
6-1/4"
Maximum Drill Depth (Decimal Inch):
6.2500"
Maximum Drill Depth (mm):
158.75mm
Shank Type:
CV 50
Through Coolant:
Yes
Drill Depth by Diameter Ratio:
2.2 X D
interval quantity:
1
SKU:
23036824
UPC:
Weight:
14.03 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

The Revolution Drill has an innovative design that allows for adjustability of 0.200" (5.1mm) on diameter, eliminating the need for specials and/or subsequent boring operations.

Features:

  • Drills from solid-no pilot required
  • Adjustable up to 0.200" (5mm) on diameter
  • Replaceable cartridges provide re-buildable function

Product Specifications
# MFGSP44X22-CV50
Drill depth (Inch)6-1/4"
Maximum Diameter (Inch)2.800"
Minimum Diameter (Inch)2.60"
Length Type2.2 X D
SeriesR44
Quantity of Inserts4
CoolantYes
Flute TypeStraight
Shank typeCV 50

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
