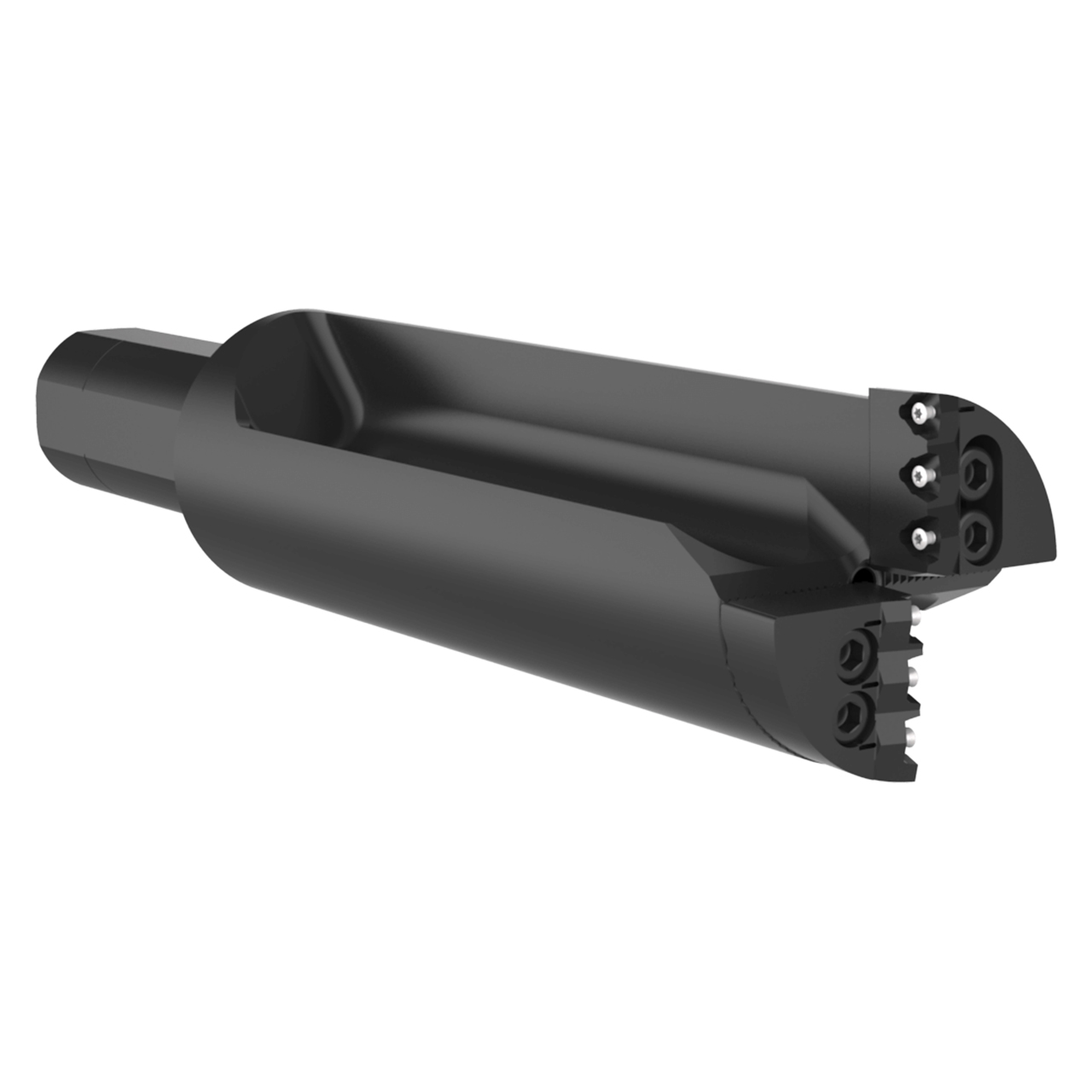

The Revolution Drill has an innovative design that allows for adjustability of 0.200" (5.1mm) on diameter, eliminating the need for specials and/or subsequent boring operations.
Features:
- Drills from solid-no pilot required
- Adjustable up to 0.200" (5mm) on diameter
- Replaceable cartridges provide re-buildable function
Product Specifications
| # MFG | SP52X25-200L |
| Drill depth (Inch) | 8-31/64" |
| Maximum Diameter (Inch) | 3.400" |
| Minimum Diameter (Inch) | 3.20" |
| Shank Diameter (Inch) | 2" |
| Length Type | 2.5 X D |
| Overall Length (Inch) | 14-37/64" |
| Series | R52 |
| Quantity of Inserts | 4 |
| Coolant | Yes |
| Flute Type | Straight |
| Shank type | Straight |
| Pipe tap rear (Inch) | 1/4 NPT |
