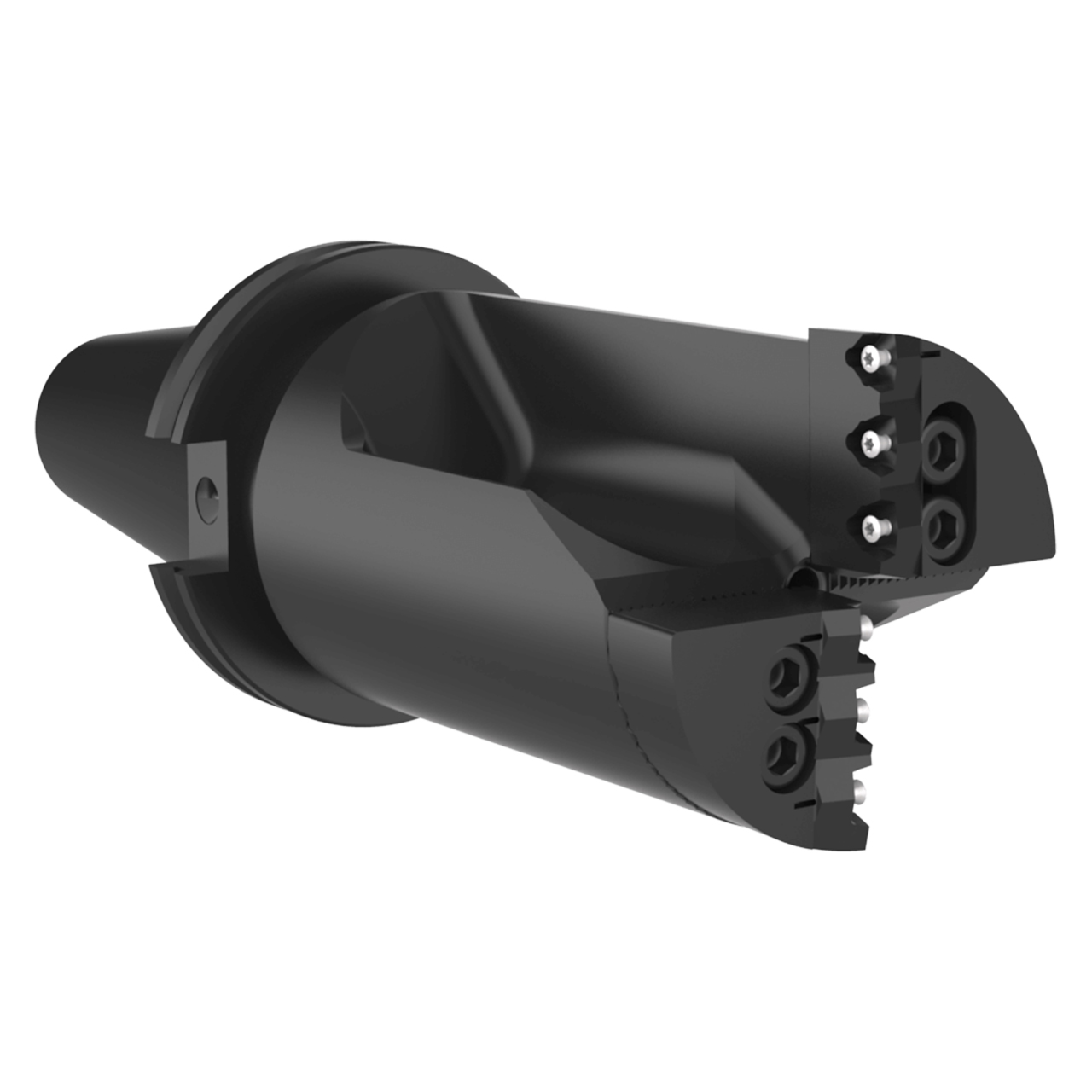

The Revolution Drill has an innovative design that allows for adjustability of 0.200" (5.1mm) on diameter, eliminating the need for specials and/or subsequent boring operations.
Features:
- Drills from solid-no pilot required
- Adjustable up to 0.200" (5mm) on diameter
- Replaceable cartridges provide re-buildable function
Product Specifications
| # MFG | SP54X10-CV50 |
| Drill depth (Inch) | 3-23/32" |
| Maximum Diameter (Inch) | 3.600" |
| Minimum Diameter (Inch) | 3.40" |
| Length Type | 1.0 X D |
| Series | R54 |
| Quantity of Inserts | 4 |
| Coolant | Yes |
| Flute Type | Straight |
| Shank type | CV 50 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Drill Style:
R54
Drill Diameter (Inch):
3-19/32"
Drill Diameter (Decimal Inch):
3.5984"
Drill Diameter (mm):
91.44mm
Maximum Drill Depth (Inch):
3-23/32"
Maximum Drill Depth (Decimal Inch):
3.7187"
Maximum Drill Depth (mm):
94.45mm
Shank Type:
CV 50
Through Coolant:
Yes
Drill Depth by Diameter Ratio:
1.0 X D
interval quantity:
1
