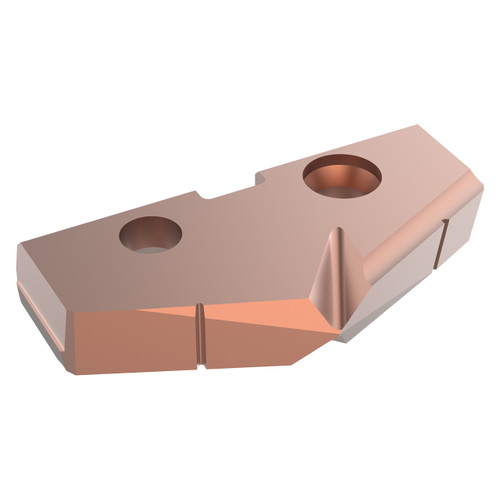

Allied Machine and Engineering TAK3-40.60 | 40.60mm Diameter x 6.35mm Thickness 132 Degree Included Angle TiAlN Coated Carbide 3 Series Spade Drill Insert

$118.25 $110.70
(You save $7.55)
interval quantity:
1
SKU:
23141777
Weight:
0.12 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

The T-A Pro is the culmination of years of application wins and losses, taking what was typically known as a general purpose tool and making it the go-to for all applications, providing a wider range and better cost per hole than competitive high performance tools.

Features:

  • The advanced T-A Pro insert combines a coating and geometry specifically designed to achieve optimal results in ISO material drilling applications
  • Proprietary coolant outlet configuration provides superior performance even in low coolant applications (200 PSI/13.80 BAR)
  • T-A Pro inserts can be used with the previous T-A insert holders

Product Specifications
# MFGTAK3-40.60
Diameter (Decimal Inch)1.5984"
Diameter (Inch)1-19/32"
Diameter (mm)40.60mm
Thickness (Decimal Inch)0.2500"
Thickness (Inch)1/4"
Thickness (mm)6.35mm
Series3
Included Angle132 Degree
CoatingTiAlN
MaterialCarbide
