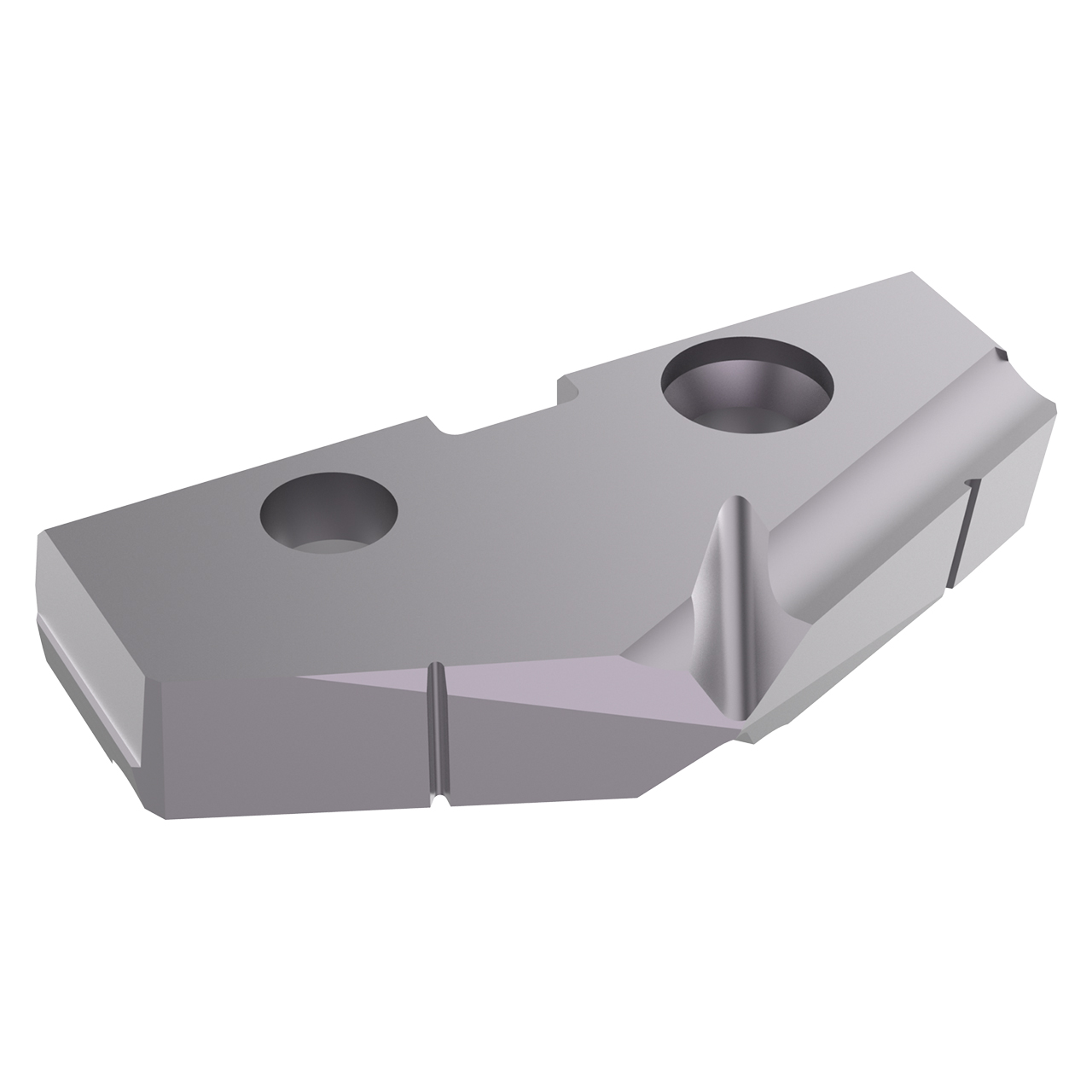

Allied Machine and Engineering TAK3-42.00 | 1.654" Diameter x 6.35mm Thickness 132 Degree Included Angle TiAlN Coated Carbide 3 Series Spade Drill Insert

SKU: 23141792 Weight: 0.13 LBS Minimum Purchase: 1 unit
UPC:
$163.00
Shipping: Calculated at Checkout

About This Item

The T-A Pro is the culmination of years of application wins and losses, taking what was typically known as a general purpose tool and making it the go-to for all applications, providing a wider range and better cost per hole than competitive high performance tools.

Features:

  • The advanced T-A Pro insert combines a coating and geometry specifically designed to achieve optimal results in ISO material drilling applications
  • Proprietary coolant outlet configuration provides superior performance even in low coolant applications (200 PSI/13.80 BAR)
  • T-A Pro inserts can be used with the previous T-A insert holders

Product Specifications
# MFGTAK3-42.00
Diameter (Decimal Inch)1.6535"
Diameter (Inch)1-21/32"
Diameter (mm)42.00mm
Thickness (Decimal Inch)0.2500"
Thickness (Inch)1/4"
Thickness (mm)6.35mm
Series3
Included Angle132 Degree
CoatingTiAlN
MaterialCarbide
