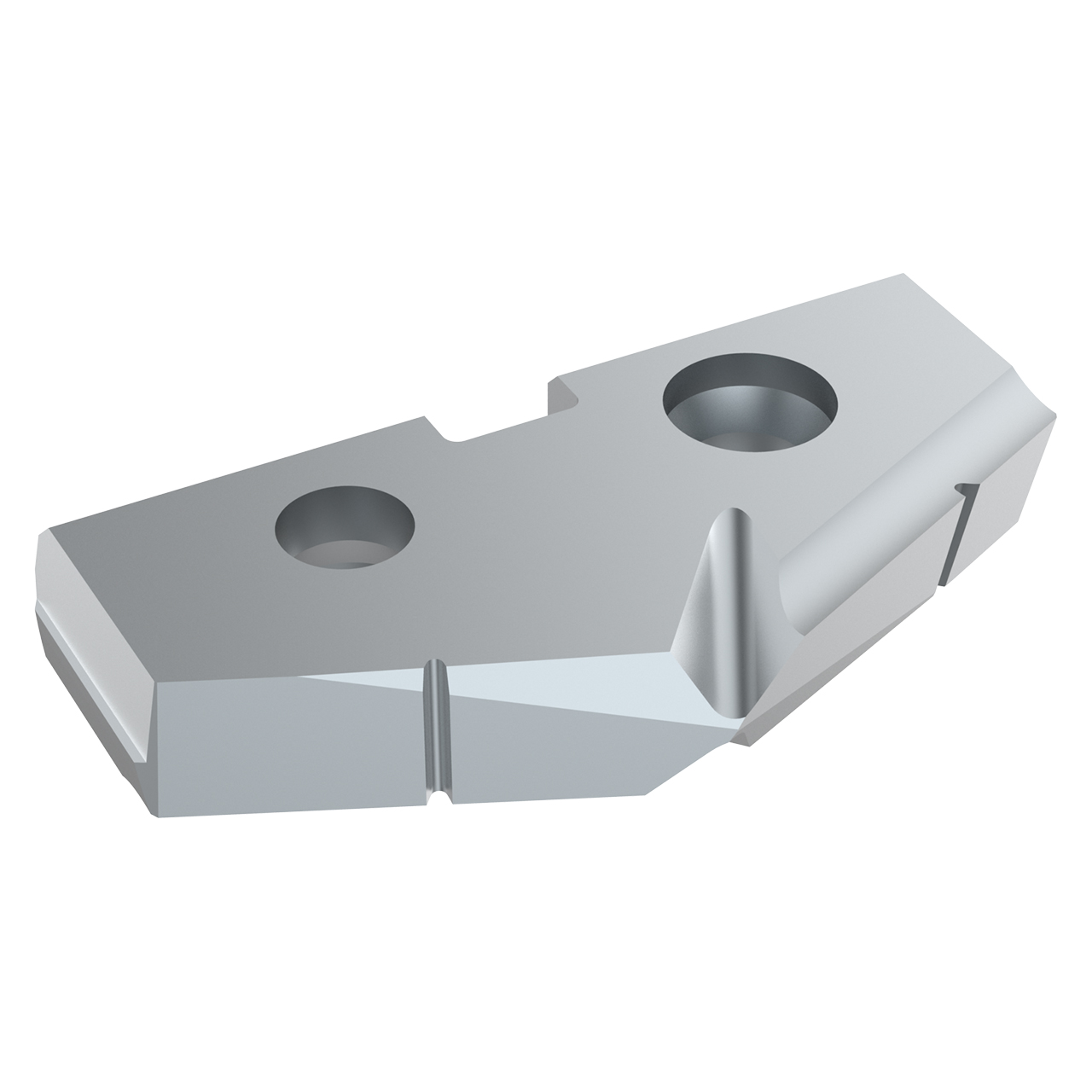

Allied Machine and Engineering TAN2-26.59 | 26.59mm Diameter x 4.76mm Thickness 132 Degree Included Angle TiCN Coated Carbide 2 Series Spade Drill Insert

SKU: 23142034 Weight: 0.05 LBS Minimum Purchase: 2 unit
UPC:
$122.25
Total Price: $122.25
Shipping: Calculated at Checkout

About This Item

The T-A Pro is the culmination of years of application wins and losses, taking what was typically known as a general purpose tool and making it the go-to for all applications, providing a wider range and better cost per hole than competitive high performance tools.

Features:

  • The advanced T-A Pro insert combines a coating and geometry specifically designed to achieve optimal results in ISO material drilling applications
  • Proprietary coolant outlet configuration provides superior performance even in low coolant applications (200 PSI/13.80 BAR)
  • T-A Pro inserts can be used with the previous T-A insert holders

Product Specifications
# MFGTAN2-26.59
Diameter (Decimal Inch)1.0468"
Diameter (Inch)1-3/64"
Diameter (mm)26.59mm
Thickness (Decimal Inch)0.1900"
Thickness (Inch)3/16"
Thickness (mm)4.76mm
Series2
Included Angle132 Degree
CoatingTiCN
MaterialCarbide
