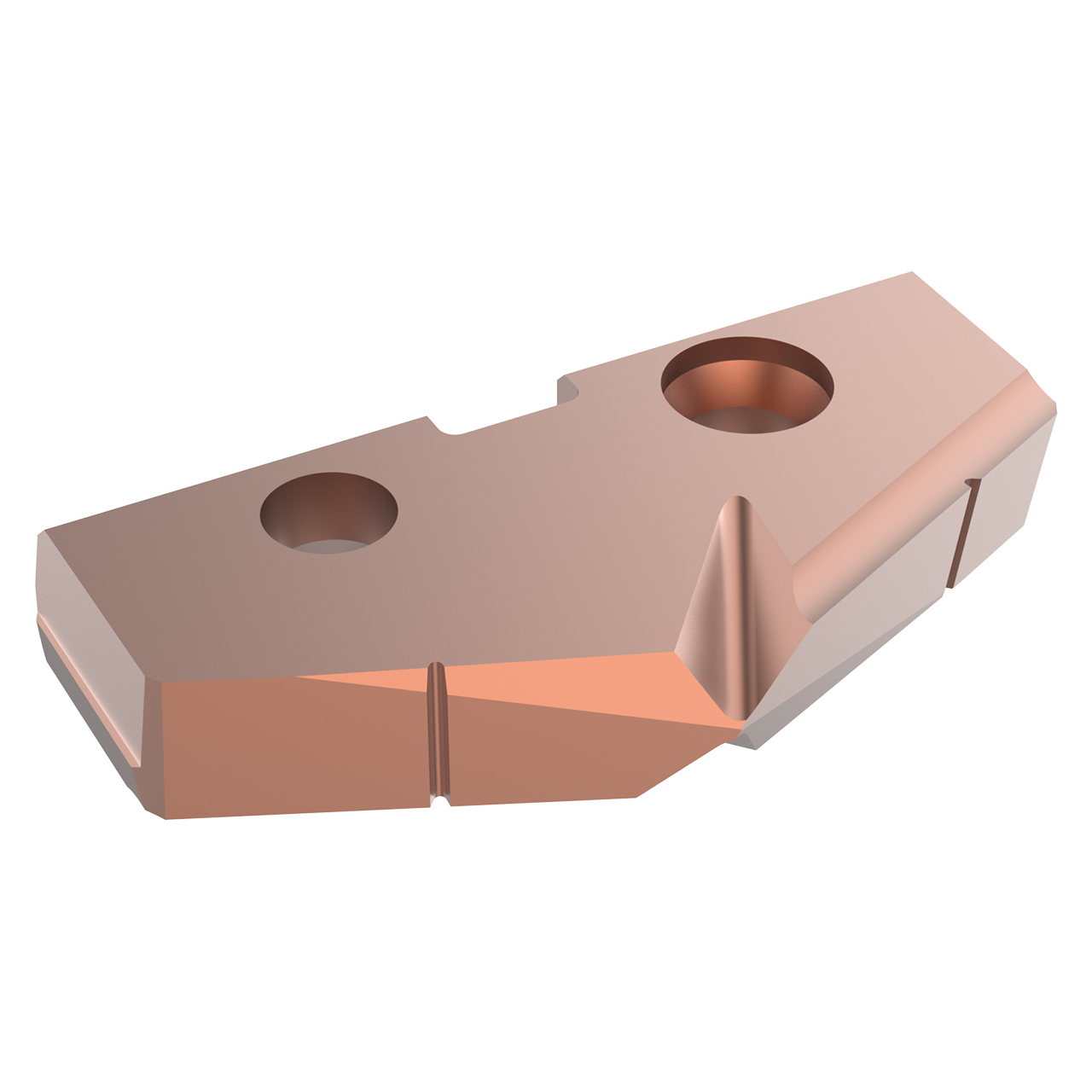

The T-A Pro is the culmination of years of application wins and losses, taking what was typically known as a general purpose tool and making it the go-to for all applications, providing a wider range and better cost per hole than competitive high performance tools.
Features:
- The advanced T-A Pro insert combines a coating and geometry specifically designed to achieve optimal results in ISO material drilling applications
- Proprietary coolant outlet configuration provides superior performance even in low coolant applications (200 PSI/13.80 BAR)
- T-A Pro inserts can be used with the previous T-A insert holders
Product Specifications
| # MFG | TAX3-43.60 |
| Diameter (Decimal Inch) | 1.7165" |
| Diameter (Inch) | 1-23/32" |
| Diameter (mm) | 43.60mm |
| Thickness (Decimal Inch) | 0.2500" |
| Thickness (Inch) | 1/4" |
| Thickness (mm) | 6.35mm |
| Series | 3 |
| Included Angle | 132 Degree |
| Coating | AM200 |
| Material | High Speed Steel |
