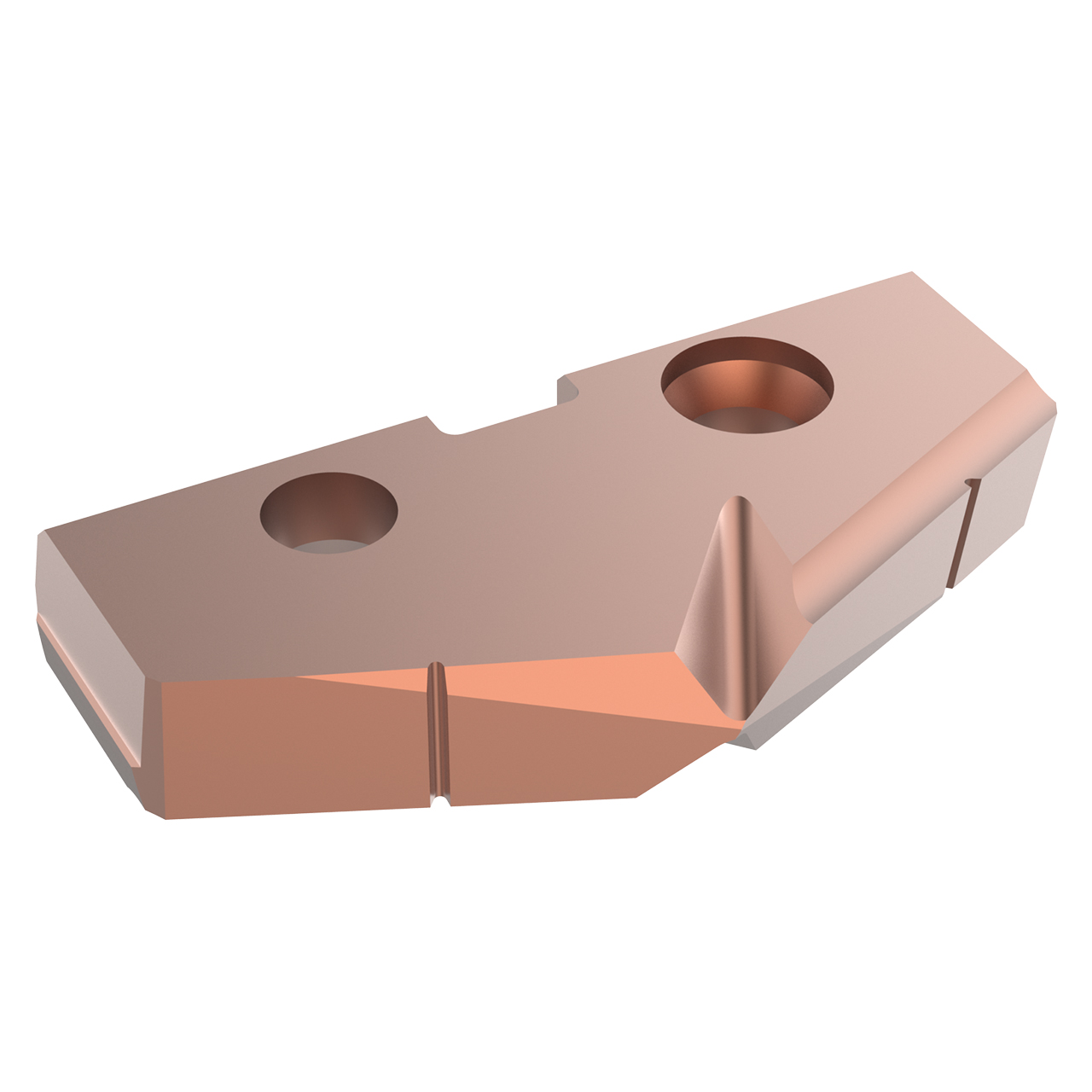

Allied Machine and Engineering TAX3-43.70 | 1.720" Diameter x 6.35mm Thickness 132 Degree Included Angle AM200 Coated High Speed Steel 3 Series Spade Drill Insert

SKU: 23164028 Weight: 0.13 LBS Minimum Purchase: 1 unit
UPC:
$78.50
Shipping: Calculated at Checkout

About This Item

The T-A Pro is the culmination of years of application wins and losses, taking what was typically known as a general purpose tool and making it the go-to for all applications, providing a wider range and better cost per hole than competitive high performance tools.

Features:

  • The advanced T-A Pro insert combines a coating and geometry specifically designed to achieve optimal results in ISO material drilling applications
  • Proprietary coolant outlet configuration provides superior performance even in low coolant applications (200 PSI/13.80 BAR)
  • T-A Pro inserts can be used with the previous T-A insert holders

Product Specifications
# MFGTAX3-43.70
Diameter (Decimal Inch)1.7204"
Diameter (Inch)1-23/32"
Diameter (mm)43.70mm
Thickness (Decimal Inch)0.2500"
Thickness (Inch)1/4"
Thickness (mm)6.35mm
Series3
Included Angle132 Degree
CoatingAM200
MaterialHigh Speed Steel
