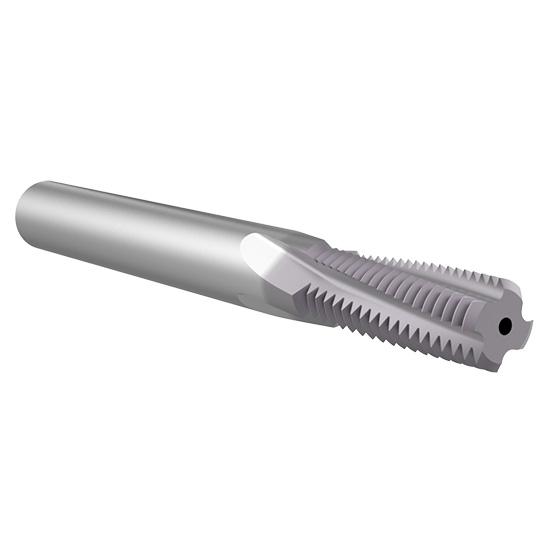

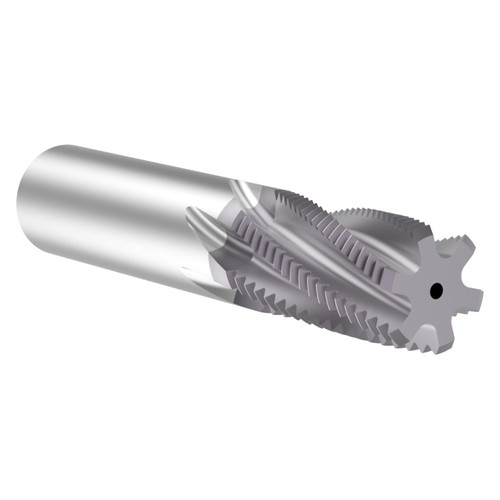

The threadmill range is manufactured from solid carbide with ground helical flutes and a TiAlN coating as standard. These products have been designed for the low volume/low cost production environment, providing excellent performance at a competitive price.
Features:
| #MFG | TM10012CH |
| Thread Size (Inch) | 1" |
| Thread Size (Decimal Inch) | 1.0000" |
| Thread Size (mm) | 25.40mm |
| Cutter Diameter (Inch) | 3/4" |
| Cutter Diameter (Decimal Inch) | 0.7450" |
| Cutter Diameter (mm) | 18.92mm |
| Pitch (Inch) | 15/32" |
| Pitch (Decimal Inch) | 0.4700" |
| Pitch (mm) | 12.00mm |
| Shank Diameter (Inch) | 3/4" |
| Shank Diameter (Decimal Inch) | 0.7500" |
| Shank Diameter (mm) | 19.05mm |
| Length of Cut (Inch) | 1-1/2" |
| Length of Cut (Decimal Inch) | 1.5000" |
| Length of Cut (mm) | 38.10mm |
| Number of Flutes | 6 |
| Thread Type | Internal/External |
| Finish/Coating | TiAlN |
| Material | Carbide |
| Through Coolant (yes/no) | Yes |
