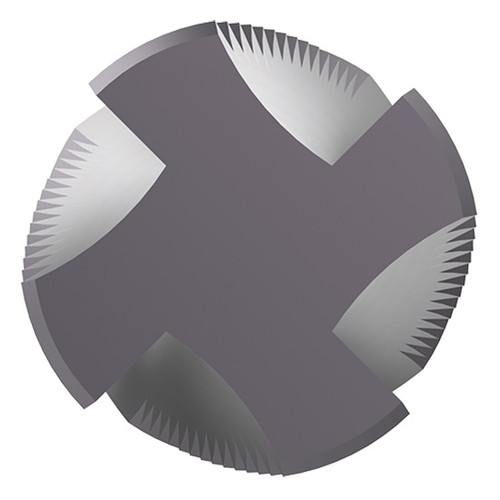

Allied Machine and Engineering TM11NPT | 1"-11.5 NPT x 0.620" Diameter x 0.625" Shank x 1.125" LOC x 4.000" OAL 4 Flute TiAIN Coated Helical Flute Thread Mill

$301.50 $283.41
(You save $18.09)
Brand:
Allied Machine and Engineering
Thread Size (Inch):
1"
Thread Size (Decimal Inch):
1.0000"
Thread Size (mm):
25.40mm
Thread Type:
Internal/External
Pitch (Inch):
29/64"
Pitch (Decimal Inch):
0.4500"
Pitch (mm):
11.50mm
Cutter Diameter (Inch):
5/8"
Cutter Diameter (Decimal Inch):
0.6200"
Cutter Diameter (mm):
15.75mm
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Shank Diameter (mm):
15.88mm
Number of Flutes:
4
Length of Cut (Inch):
1-1/8"
Length of Cut (Decimal Inch):
1.1250"
Length of Cut (mm):
28.58mm
Finish/Coating:
TiAIN
Material:
Carbide
interval quantity:
1
SKU:
15014622
UPC:
768413414721
Weight:
0.54 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping
Allied Machine and Engineering TM11NPT | 1"-11.5 NPT x 0.620" Diameter x 0.625" Shank x 1.125" LOC x 4.000" OAL 4 Flute TiAIN Coated Helical Flute Thread Mill

The threadmill range is manufactured from solid carbide with ground helical flutes and a TiAlN coating as standard. These products have been designed for the low volume/low cost production environment, providing excellent performance at a competitive price.

Features:

  • Full product offering of UN,NPT,NPTF, and METRIC tools
  • TiAlN coated for increased tool life over uncoated tools
  • Extensive range of thread forms
  • Coolant through
  • Thread Per Inch : 11.5
  • Thread Form : NPT

Product Specifications
#MFGTM11NPT
Thread Size (Inch)1"
Thread Size (Decimal Inch)1.0000"
Thread Size (mm)25.40mm
Cutter Diameter (Inch)5/8"
Cutter Diameter (Decimal Inch)0.6200"
Cutter Diameter (mm)15.75mm
Pitch (Inch)29/64"
Pitch (Decimal Inch)0.4500"
Pitch (mm)11.50mm
Shank Diameter (Inch)5/8"
Shank Diameter (Decimal Inch)0.6250"
Shank Diameter (mm)15.88mm
Length of Cut (Inch)1-1/8"
Length of Cut (Decimal Inch)1.1250"
Length of Cut (mm)28.58mm
Number of Flutes4
Thread TypeInternal/External
Finish/CoatingTiAIN
MaterialCarbide

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Allied Machine and Engineering
Thread Size (Inch):
1"
Thread Size (Decimal Inch):
1.0000"
Thread Size (mm):
25.40mm
Thread Type:
Internal/External
Pitch (Inch):
29/64"
Pitch (Decimal Inch):
0.4500"
Pitch (mm):
11.50mm
Cutter Diameter (Inch):
5/8"
Cutter Diameter (Decimal Inch):
0.6200"
Cutter Diameter (mm):
15.75mm
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Shank Diameter (mm):
15.88mm
Number of Flutes:
4
Length of Cut (Inch):
1-1/8"
Length of Cut (Decimal Inch):
1.1250"
Length of Cut (mm):
28.58mm
Finish/Coating:
TiAIN
Material:
Carbide
interval quantity:
1
