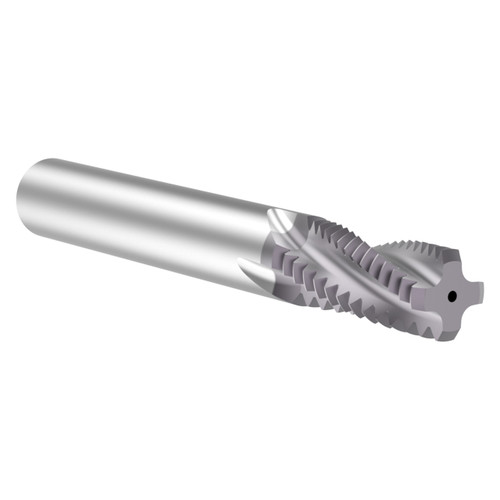

The threadmill range is manufactured from solid carbide with ground helical flutes and a TiAlN coating as standard. These products have been designed for the low volume/low cost production environment, providing excellent performance at a competitive price.
Features:
- Full product offering of UN,NPT,NPTF, and METRIC tools
- TiAlN coated for increased tool life over uncoated tools
- Extensive range of thread forms
- Coolant through
- Thread Form : ISO
Product Specifications
| #MFG | TM12175CHM |
| Thread Size (mm) | M12 |
| Cutter Diameter (Inch) | 3/8" |
| Cutter Diameter (Decimal Inch) | 0.3701" |
| Cutter Diameter (mm) | 9.14mm |
| Pitch (Inch) | 1/16" |
| Pitch (Decimal Inch) | 0.0700" |
| Pitch (mm) | 1.75mm |
| Shank Diameter (Inch) | 25/64" |
| Shank Diameter (Decimal Inch) | 0.3937" |
| Shank Diameter (mm) | 10.00mm |
| Length of Cut (Inch) | 57/64" |
| Length of Cut (Decimal Inch) | 0.8941" |
| Length of Cut (mm) | 22.71mm |
| Number of Flutes | 4 |
| Thread Type | Internal/External |
| Finish/Coating | TiAIN |
| Material | Carbide |
| Through Coolant (yes/no) | Yes |
