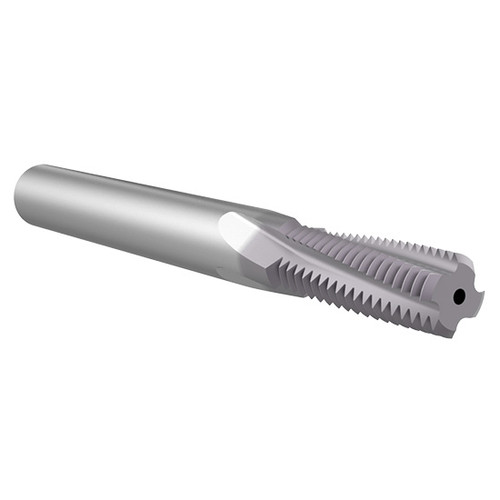

The threadmill range is manufactured from solid carbide with ground helical flutes and a TiAlN coating as standard. These products have been designed for the low volume/low cost production environment, providing excellent performance at a competitive price.
Features:
- Full product offering of UN,NPT,NPTF, and METRIC tools
- TiAlN coated for increased tool life over uncoated tools
- Extensive range of thread forms
- Coolant through
- Thread Per Inch : 7
- Thread Form : UN
Product Specifications
| #MFG | TM12507M |
| Thread Size (Inch) | 1-1/8" |
| Thread Size (Decimal Inch) | 1.1250" |
| Thread Size (mm) | 28.58mm |
| Cutter Diameter (Inch) | 25/32" |
| Cutter Diameter (Decimal Inch) | 0.7835" |
| Cutter Diameter (mm) | 19.90mm |
| Pitch (Inch) | 9/32" |
| Pitch (Decimal Inch) | 0.2800" |
| Pitch (mm) | 7.00mm |
| Shank Diameter (Inch) | 25/32" |
| Shank Diameter (Decimal Inch) | 0.7874" |
| Shank Diameter (mm) | 20.00mm |
| Length of Cut (Inch) | 1-27/64" |
| Length of Cut (Decimal Inch) | 1.4291" |
| Length of Cut (mm) | 36.30mm |
| Number of Flutes | 5 |
| Thread Type | Internal/External |
| Finish/Coating | TiAlN |
| Material | Carbide |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Thread Size (Inch):
1-1/8"
Thread Size (Decimal Inch):
1.1250"
Thread Size (mm):
28.58mm
Thread Type:
Internal/External
Pitch (Inch):
9/32"
Pitch (Decimal Inch):
0.2800"
Pitch (mm):
7.00mm
Cutter Diameter (Inch):
25/32"
Cutter Diameter (Decimal Inch):
0.7835"
Cutter Diameter (mm):
19.90mm
Finish/Coating:
TiAlN
Material:
Carbide
