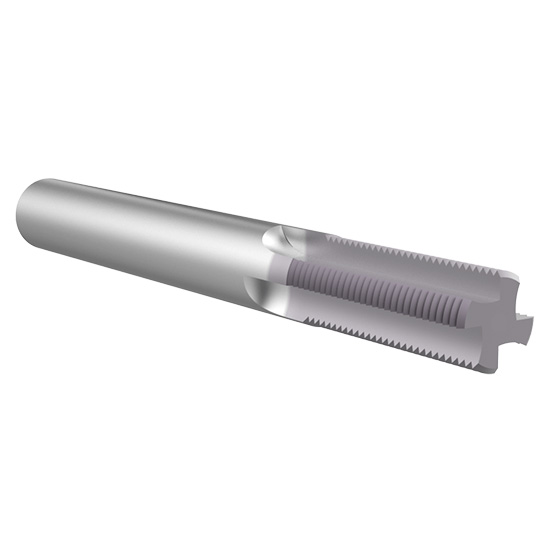

The threadmill range is manufactured from solid carbide with ground helical flutes and a TiAlN coating as standard. These products have been designed for the low volume/low cost production environment, providing excellent performance at a competitive price.
Features:
- Full product offering of UN,NPT,NPTF, and METRIC tools
- TiAlN coated for increased tool life over uncoated tools
- Extensive range of thread forms
- Coolant through
- TPI : #4-40
- Thread Form : UN
Product Specifications
| #MFG | TM12540 |
| Thread Size (Inch) | #4 |
| Cutter Diameter (Inch) | 5/64" |
| Cutter Diameter (Decimal Inch) | 0.0850" |
| Cutter Diameter (mm) | 19.90mm |
| Pitch (Inch) | 1-37/64" |
| Pitch (Decimal Inch) | 1.5700" |
| Pitch (mm) | 40.00mm |
| Shank Diameter (Inch) | 1/8" |
| Shank Diameter (Decimal Inch) | 0.1250" |
| Shank Diameter (mm) | 3.18mm |
| Length of Cut (Inch) | 11/64" |
| Length of Cut (Decimal Inch) | 0.1750" |
| Length of Cut (mm) | 4.450mm |
| Number of Flutes | 3 |
| Thread Type | Internal/External |
| Finish/Coating | TiAIN |
| Material | Carbide |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Thread Size (Inch):
#4
Thread Type:
Internal/External
Pitch (Inch):
1-37/64"
Pitch (Decimal Inch):
1.5700"
Pitch (mm):
40.00mm
Cutter Diameter (Inch):
5/64"
Cutter Diameter (Decimal Inch):
0.0850"
Cutter Diameter (mm):
19.90mm
Finish/Coating:
TiAIN
Material:
Carbide
