Features:
- Thread Per Inch :2
Product Specifications

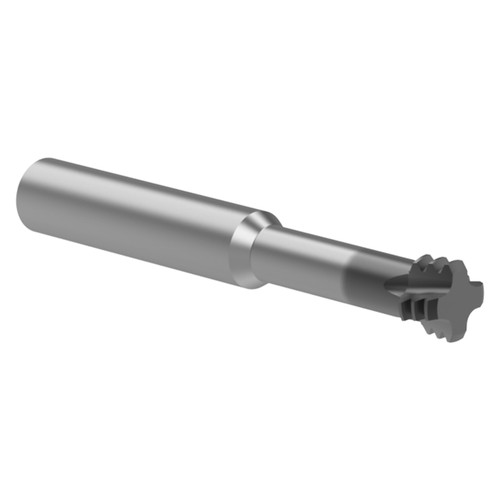

| # MFG | TM16200M-3T2X |
| Cutter Diameter (mm) | 11.94mm |
| Length of Cut (mm) | 32mm |
| Overall Length (mm) | 88.9mm |
| Shank Diameter (mm) | 12.00mm |
| Minimum Thread Size | M16 |
| Number of Flutes | 4 |
| Pitch | 2 |
| Cutting Direction | Left Hand (M04) |
| Depth to Diameter | 2X |
| Shank Type | Cylindrical |
| Thread Standard | ISO |
| Coolant Through | No |
| Coating | AM210 |
| Material | Carbide |
| Flute Type | Helical |
