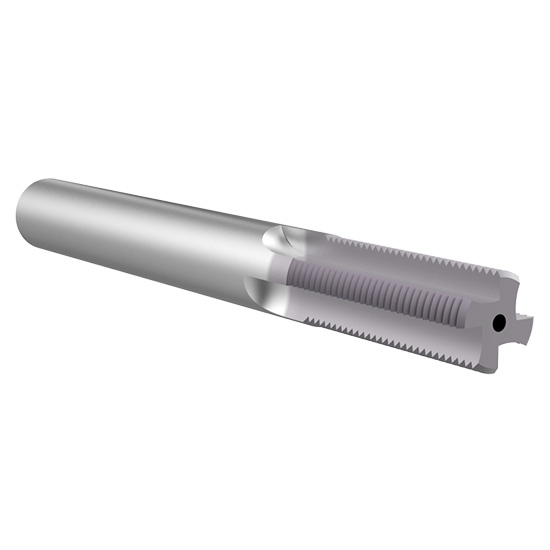

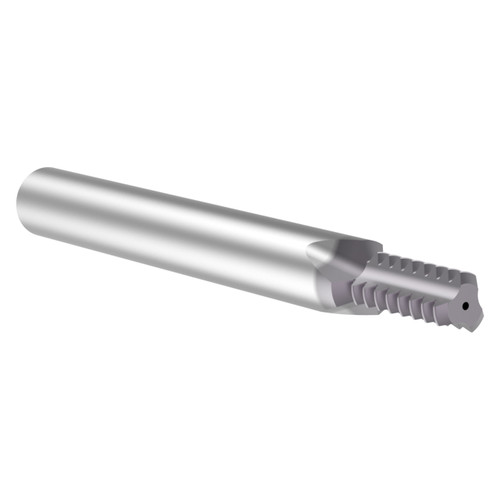

The threadmill range is manufactured from solid carbide with ground helical flutes and a TiAlN coating as standard. These products have been designed for the low volume/low cost production environment, providing excellent performance at a competitive price.
Features:
| #MFG | TM18BSWCHM |
| Thread Size (Inch) | 5/16" |
| Thread Size (Decimal Inch) | 0.3125" |
| Thread Size (mm) | 7.94mm |
| Cutter Diameter (Inch) | 13/64" |
| Cutter Diameter (Decimal Inch) | 0.1969" |
| Cutter Diameter (mm) | 5.00nm |
| Pitch (Inch) | 45/64" |
| Pitch (Decimal Inch) | 0.7100" |
| Pitch (mm) | 18.00mm |
| Shank Diameter (Inch) | 15/64" |
| Shank Diameter (Decimal Inch) | 0.2362" |
| Shank Diameter (mm) | 6.00mm |
| Length of Cut (Inch) | 7/16" |
| Length of Cut (Decimal Inch) | 0.4445" |
| Length of Cut (mm) | 11.29mm |
| Number of Flutes | 3 |
| Thread Type | Internal/External |
| Finish/Coating | TiAIN |
| Material | Carbide |
| Through Coolant (yes/no) | Yes |
