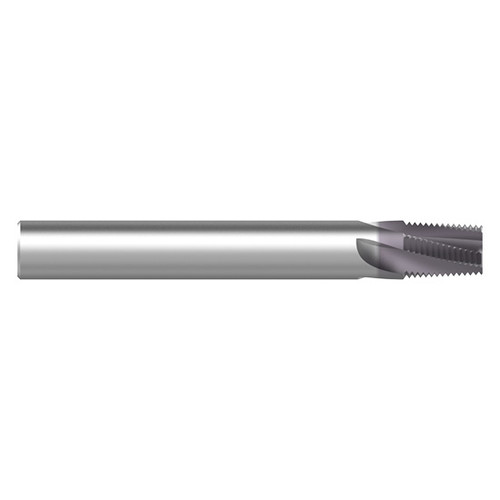

The threadmill range is manufactured from solid carbide with ground helical flutes and a TiAlN coating as standard. These products have been designed for the low volume/low cost production environment, providing excellent performance at a competitive price.
Features:
| #MFG | TM18NPTFM |
| Thread Size (Inch) | 1/4" and 3/8" |
| Thread Size (Decimal Inch) | 0.2500" and 0.3750" |
| Thread Size (mm) | 6.35mm and 9.53mm |
| Cutter Diameter (Inch) | 5/16" |
| Cutter Diameter (Decimal Inch) | 0.3051" |
| Cutter Diameter (mm) | 7.75mm |
| Pitch (Inch) | 45/64" |
| Pitch (Decimal Inch) | 0.7100" |
| Pitch (mm) | 18.00mm |
| Shank Diameter (Inch) | 5/16" |
| Shank Diameter (Decimal Inch) | 0.3150" |
| Shank Diameter (mm) | 8.00mm |
| Length of Cut (Inch) | 5/8" |
| Length of Cut (Decimal Inch) | 0.6181" |
| Length of Cut (mm) | 15.70mm |
| Number of Flutes | 4 |
| Thread Type | Internal/External |
| Finish/Coating | TiAlN |
| Material | Carbide |
