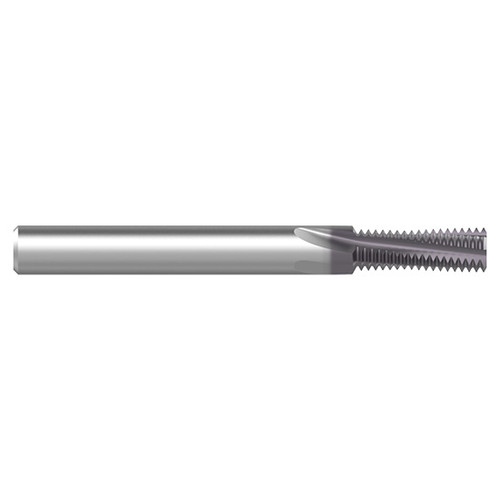

The threadmill range is manufactured from solid carbide with ground helical flutes and a TiAlN coating as standard. These products have been designed for the low volume/low cost production environment, providing excellent performance at a competitive price.
Features:
- Full product offering of UN,NPT,NPTF, and METRIC tools
- TiAlN coated for increased tool life over uncoated tools
- Extensive range of thread forms
- Coolant through
- Thread Per Inch : 28
- Thread Form : UN
Product Specifications
| #MFG | TM19028CH |
| Thread Size (Inch) | #10 |
| Cutter Diameter (Inch) | 1/8" |
| Cutter Diameter (Decimal Inch) | 0.1200" |
| Cutter Diameter (mm) | 3.05mm |
| Pitch (Inch) | 1-7/64" |
| Pitch (Decimal Inch) | 1.1000" |
| Pitch (mm) | 28.00mm |
| Shank Diameter (Inch) | 1/8" |
| Shank Diameter (Decimal Inch) | 0.1250" |
| Shank Diameter (mm) | 3.18mm |
| Length of Cut (Inch) | 5/16" |
| Length of Cut (Decimal Inch) | 0.3120" |
| Length of Cut (mm) | 7.920mm |
| Number of Flutes | 3 |
| Thread Type | Internal/External |
| Finish/Coating | TiAlN |
| Material | Carbide |
| Through Coolant (yes/no) | Yes |
